Description

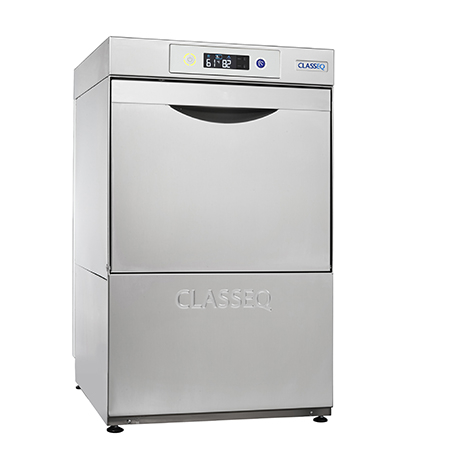

Front-loading commercial dishwasher with three minute wash cycle and simple two button controls for effortless, consistently clean results
In addition, clever software constantly monitors water usage, temperature, chemical levels and wash cycles giving valuable data used to improve operational efficiencies
The three minute cycle allows for maximum output without compromising wash quality
Temperature interlock guarantees the rinse is at correct temperature
We’ve maximised our user experience through two simple button controls
All models come as standard with a gravity drain,which is suitable in instances where the machine is above the waste outlet
Colour coded display- Amber flashing – Machine heating, Blue – Machine in cycle, Green – Machine ready
| Model No | D400 |
| Hydraulic Specifications | |
| Water supply connection | 3/4″ BSP |
| Minimum allowed supply water pressure | 2.00 bar |
| Required water flow rate | 11L/min |
| Minimum incoming water temperature | 4 °C |
| Maximum incoming water temperature | 55 °C |
| Gravity drain height (from machine base) | 40mm |
| Pumped drain height (from machine base) | 540mm |
| Drain size | ⌀ 40mm |
| Electrical Specifications | |
| Standard Set-Up | |
| Amps required | 13A (1 phase) |
| Standard operating voltage | 220-240V / 1N / 50Hz |
| Total connected load | 2.85kW |
| Optional Set-Up | |
| Amps required | 13A (3 phase) |
| Standard operating voltage | 380-415V / 3N / 50Hz |
| Total connected load | 6.58Kw |
| Optional Set-Up | |
| Amps required | 30A (1 phase) |
| Standard operating voltage | 220-240V / 1N / 50Hz |
| Total connected load | 6.58kW |
| Performance | |
| Theoretical Max racks/hour | 20 |
| Glasses per rack | 9 |
| Wash tank element | 2.00kW |
| Rinse tank element | 2.60kW |
| Wash tank capacity | 9.77 Litres |
| Rinse tank capacity | 6.5 Litres |
| Rinse water consumption at 3 bar | 3.00 L/cycle |
| Wash tank temperature | 55 °C |
| Rinse tank temperature | 82 °C |
| Wash pump power | 0.25kW |
| Rinse pump power | N/A |
| Other | |
| Noise level | <70dB |
| Empty weight | 32kg |
| Fully loaded weight | 43.5kg |
| Packaged weight | 43.2kg |
