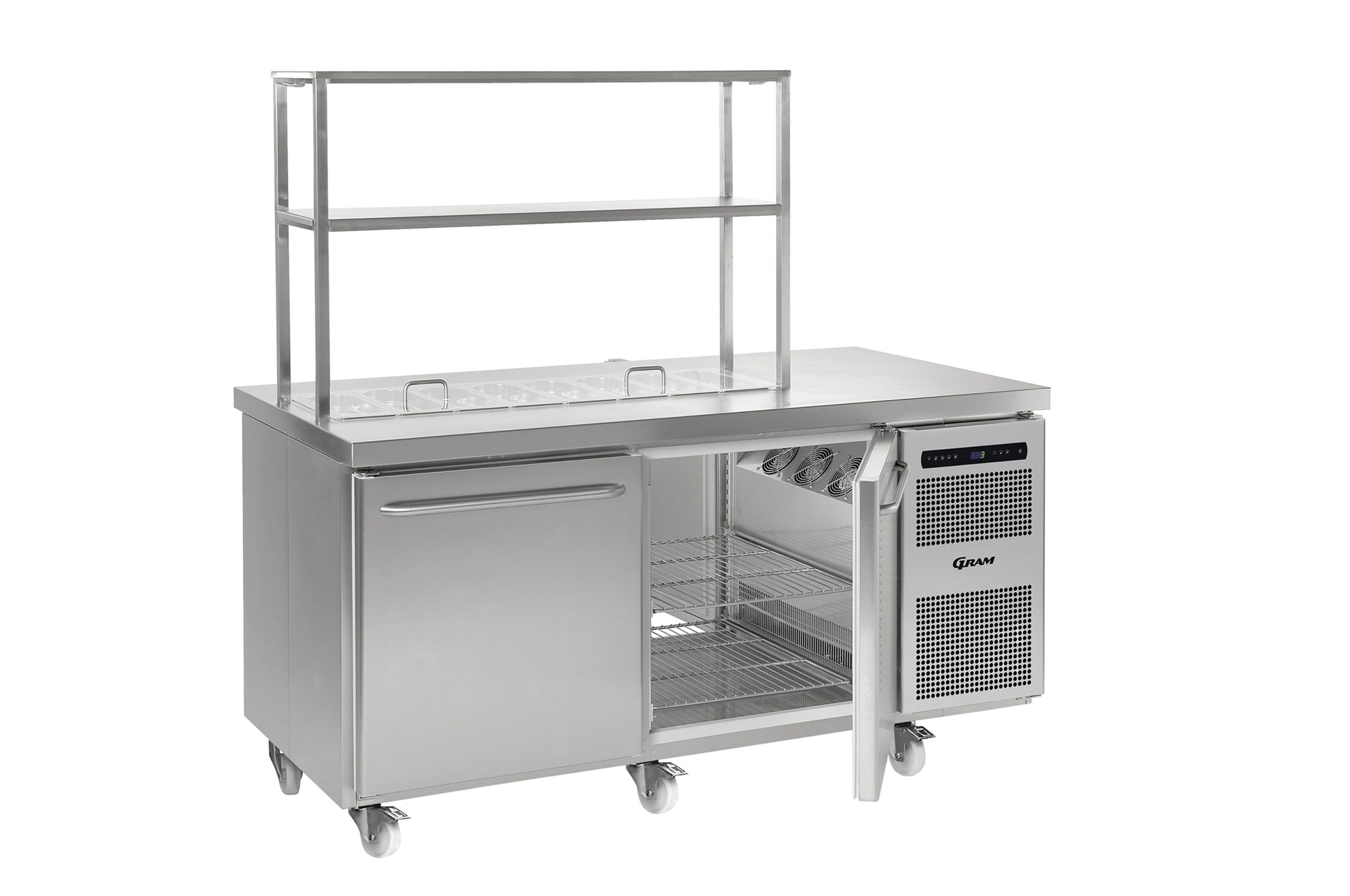

The GRAM GASTRO 08 series is 2/1 GN refrigerated and freezer counters that can be used as an island suite, possibly with pass through (only refrigeration), or be placed against a wall or, if necessary, under an existing worktop.
The series is available with 2 or 3 refrigerated sections.
The range includes flat worktops with or without splashback and saladette worktops with insulated or acrylic lids.
The cabinet is also available with insulation board only, i.e. without a worktop.
Gantry is an optional extra.
Each of the refrigerated sections is available with door sets, with or without locks.
Also each section is offered with 9 bakery support sets, instead of shelves.
Internal and external surfaces are made of stainless steel.
The height of the cabinet is 750 mm + the chosen legs/castors.
The depth of the worktop is 800 mm. Counters with internal compressor are also available with electric elevation for flexible working height from 850 to 1050 mm. C
hoose between refrigeration +2/+12 ºC, extended refrigeration -5/+12 ºC or freezing -25/-5 ºC.
Equipped with: Stainless steel solid top, 2 door sections each with 2 stainless shelves
Temperature range: +2/+12°C
Volume, gross: 586 ltr./20.7 cu.ft.
Model K1808CSHADLDRC2U and K1808CSHSLDLDRC2U – 1700W x 800D x 905H mm
Model K1808DCSHSOPLDLDRC2U – 1700W x 870D x 905H mm
Insulation: 50 mm (cyclopentane)
Refrigerant: R290 (propane)/0.07kg/ CO2e 0.23kg/3
Ref. capacity at -10°C – 389 Watt
Connection: 230 V, 50 Hz
Connection load: 310 Watt
