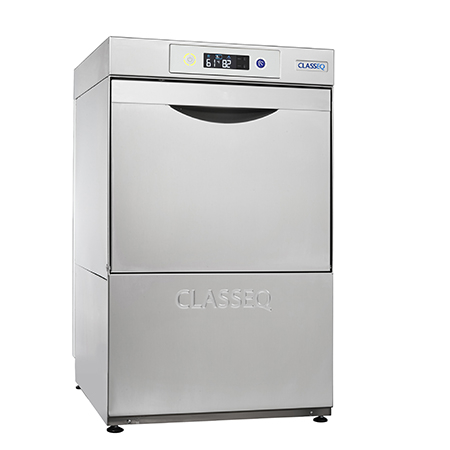

Classeq D400 Dishwasher -Drain Pump

Warranty: 1 Year Parts & Labour
Save 51%

Lease from £11.89 per week.

Price match

RRP: £3,634.80£1,798.80 inc VAT£1,499.00 ex VAT

In stock

SKU: D400P

Description

Front-loading commercial dishwasher with three minute wash cycle and simple two button controls for effortless, consistently clean results

In addition, clever software constantly monitors water usage, temperature, chemical levels and wash cycles giving valuable data used to improve operational efficiencies

The three minute cycle allows for maximum output without compromising wash quality

Temperature interlock guarantees the rinse is at correct temperature

We’ve maximised our user experience through two simple button controls

All models come as standard with a gravity drain,which is suitable in instances where the machine is above the waste outlet

Colour coded display- Amber flashing – Machine heating, Blue – Machine in cycle, Green – Machine ready



Model No D400
Hydraulic Specifications
Water supply connection 3/4″ BSP
Minimum allowed supply water pressure 2.00 bar
Required water flow rate 11L/min
Minimum incoming water temperature 4 °C
Maximum incoming water temperature 55 °C
Gravity drain height (from machine base) 40mm
Pumped drain height (from machine base) 540mm
Drain size ⌀ 40mm
Electrical Specifications
Standard Set-Up
Amps required 13A (1 phase)
Standard operating voltage 220-240V / 1N / 50Hz
Total connected load 2.85kW
Optional Set-Up
Amps required 13A (3 phase)
Standard operating voltage 380-415V / 3N / 50Hz
Total connected load 6.58Kw
Optional Set-Up
Amps required 30A (1 phase)
Standard operating voltage 220-240V / 1N / 50Hz
Total connected load 6.58kW
Performance
Theoretical Max racks/hour 20
Glasses per rack 9
Wash tank element 2.00kW
Rinse tank element 2.60kW
Wash tank capacity 9.77 Litres
Rinse tank capacity 6.5 Litres
Rinse water consumption at 3 bar 3.00 L/cycle
Wash tank temperature 55 °C
Rinse tank temperature 82 °C
Wash pump power 0.25kW
Rinse pump power N/A
Other
Noise level <70dB
Empty weight 32kg
Fully loaded weight 43.5kg
Packaged weight 43.2kg

Additional information

Dimensions 450 × 760 cm
Manufacturer

Classeq

Capacity

400 x 400mm Basket

Power Supply

13A

Equipment Depth (mm)

517

Height

760 (Max 790)

Width

450

Warranty

1 Year Parts & Labour
