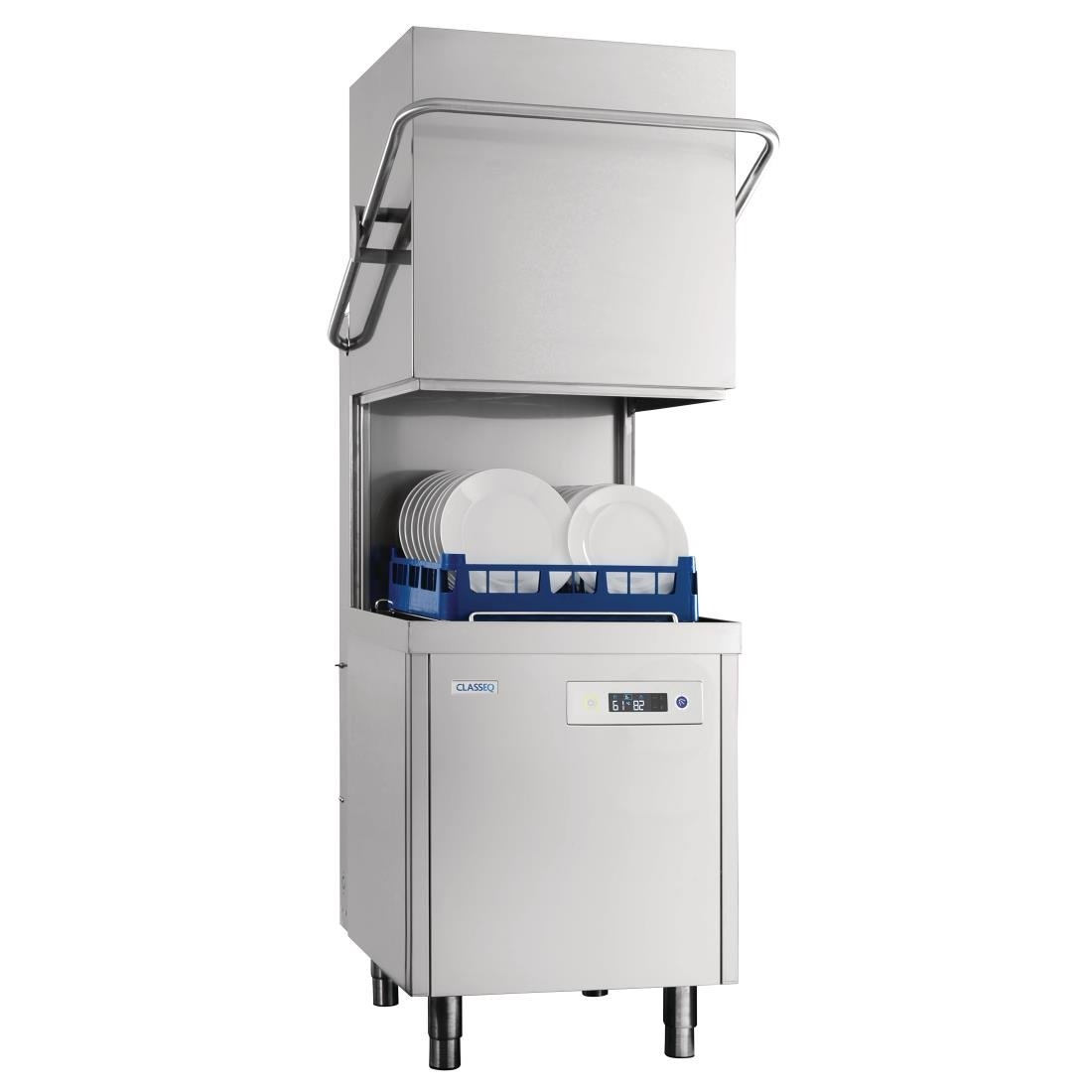

Classeq P500A – 30 Hood Type Dishwasher -Chemical Pumps-Single Phase

Warranty: 1 Year Parts & Labour
Save 52%

Finance from £30.41 per week.

Price match

RRP: £9,620.40£4,602.00 inc VAT£3,835.00 ex VAT

In stock

SKU: P500AD30

Description

FOR EVERY DAY USE

High volume, Simple to use, WRAS compliant dishwashers, suitable for straight-through or corner sited operations.
Classeq’s range of digital pass-through dishwashers (also known at hood types) are perfectly suited to any busy kitchen and are capable of cleaning up to 720 plates per hour
With a 39 litre wash tank, running costs are kept to a minimum and features such as continuous hood clean and removable wash arms ensure they are easy to clean.
All machines have simple to use digital controls, an LCD display to show wash and rinse tank temperatures and select cycle programs, plus are fully water board compliant.
Drain pumps are fitted as standard , chemical pumps and water softeners are available as an optional extra
All machines can be upgraded to include an integral water softener. (An essential requirement in HARD WATER areas).



Model No P500AD30
Width (mm) 630
Depth (mm) 720
Height – Hood Open (mm) 1940 – 1990
Height – Hood Closed (mm) 1470 – 1520
Maximum Clear Entry Height (mm) 440
Water Inlet Height Floor Level (mm) 265 – 315
Drain Height Floor Level (mm) 0-700
Drain Size (mm) Ø40
Rack Size (mm) 500 x 500
Hydraulic Specifications
Water Supply Connection (in) 3/4
Required Water Pressure 2.0 bar
Required Water Flow Rate 11 Ltrs/min 4Ltrs/min (WS)
Electrical Specifications
Operating Voltage – Standard 380-415AC/50/3N
Operating Voltage – Optional 220-240AC/50/1N
Amps Required – 1Phase 40°C – 30A
Water Fed @ 10°C – 30A
Amps Required – 3Phase 40°C – 12A
Water Fed @ 10°C – 12A
Rinse Boiler Heating – 380-415AC/50/3N / 220-240AC/50/1N 6.00kW
Total Connected Load – 380-415AC/50/3N / 220-240AC/50/1N 6.68kW
Performance
Theoretical Maximum racks/hour 40
Max No. of Plates per Rack 18
Cycle Times (mins) 1.5 / 3 / 5
Operating Noise Level <70dB
Net Weight (kg) 130
Wash Pump Sizes 0.58kW
Wash Pump Capacity 380Ltrs/min
Wash Tank Capacity 39Ltrs
Wash Tank Heating 4.05kW
Wash Tank Temperature 55°C
Rinse Boiler Capacity 7.5Ltrs
Rinse Boiler Temperature 82°C
Rinse Water Consumption @ 2bar 3.25Ltrs
