Description

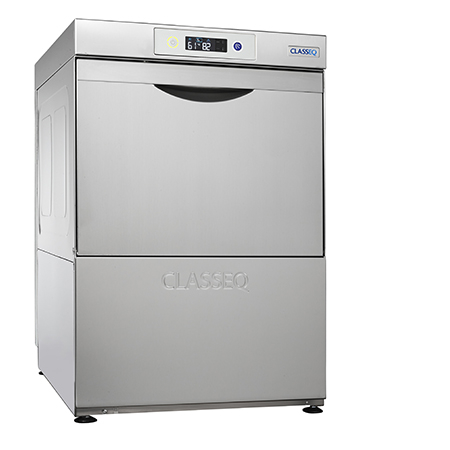

Our compact, front-loading glasswashers are available in three sizes, holding up to 25 pint-sizes glasses per rack.
In addition, clever software constantly monitors water usage, temperature, chemical levels and wash cycles giving valuable data used to improve operational efficiencies
Two minute cycle allows for maximum output without compromising wash quality
Temperature interlock guarantess the rinse is at correct temperature
Simple two-button control for improved user experience
All models come as standard with a gravity drain, which is suitable in instances where the machine is above the wate outlet
Colour coded display- Amber flashing- machine heating, Blue – Machine in Cycle, Green – Machine ready.
WRAS compliant Tye ‘B’ Air Gap
Model No | G500 |
Hydraulic Specifications | |
Water supply connection | 3/4″ BSP |
Minimum allowed supply water pressure | 2.0 bar |
Required water flow rate | 11L/min |
Minimum incoming water temperature | 4°C |
Maximum incoming water temperature | 55°C |
Gravity drain height (from machine base) | 40mm |
Pumped drain height (from machine base ( | 600mm |
Drain size | Ø 40mm |
Electrical Specifications | |
Standard Set-Up | |
Amps required | 30A (1 phase) |
Standard operating voltage | 220-240V / 1N / 50Hz |
Total connected load | 6.58kW |
Optional Set-Up | |
Amps required | 13A (3 phase) |
Standard operating voltage | 380-415 / 3N / 50Hz |
Total connected load | 6.58Kw |
Optional Set-Up | |
Amps required | 12A (1 phase) |
Standard operating voltage | 220-240V / 1N / 50Hz |
Total connected load | 2.58Kw |
Performance | |
Theoretical Max racks/hour | 40 |
Glasses per rack | 25 |
Wash tank element | 2.00kW |
Rinse tank element | 6.00kW |
Wash tank capacity | 14.33 Litres |
Rinse tank capacity | 7.5 Litres |
Rinse water consumption at 3 bar | 3.00 L/cycle |
Wash tank temperature | 55°C |
Rinse tank temperature | 82°C |
Wash pump power | 0.58kW |
Other | |
Noise Level | >70dB |
Empty weight | 44kg |
Fully loaded weight | 64.5kg |
Packaged weight | 57.6kg |
