Classeq G500DUO Glasswasher -Drain Pump

Description

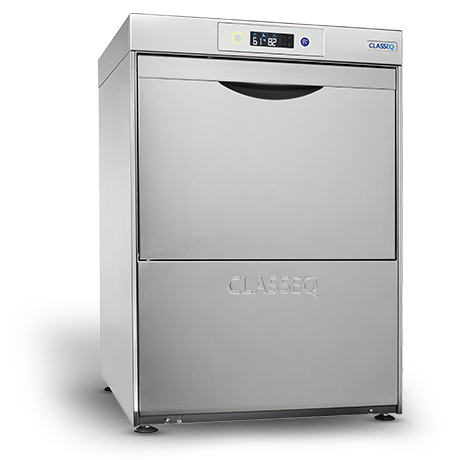

Available in two sizes, our front-loading commercial glasswasher with digital display, two wash programs and full WRAS compliance for effortless and consistently clean results

The digital LCD display accurately shows the temperature of the wash tank and rinse boiler, re-assuring the operator that it is up to temperature and fully sanitising during the wash cycle.

Two wash programmes – standard (2min) and light (1.5min) cycles allow for maximum output without compromising wash quality

All Duo’s come with Drain Pumps and built in chemical dispensers to ensure they meet installation requirements

LCD display – enhances user functionaliTy by displaying rinse and wash tank temperatures

Water board (WRAS) Compliant- All Duo machines are fully compliant with essential Water Board regulations

Double skinned sides and door allows a quieter operation and reduces heat loss

Model NoG500DUOHydraulic SpecificationsWater supply connection3/8″ BSPMinimum allowed supply water pressure0.5 barRequired water flow rate11L/minMinimum incoming water temperature4°CMaximum incoming water temperature55°CGravity drain height (from machine base)40mmPumped drain height (from machine base600mmDrain size⌀ 40mmElectrical SpecificationsStandard Set-UpAmps required30A (1 phase)Standard operating voltage220-240V/ 1N / 50HzTotal connected load6.58kWOptional Set-UpAmps required13A (3 phase)Standard operating voltage380-415V / 3N / 50HzTotal connected load6.58KwOptional Set-UpAmps required12A (1 phase)Standard operating voltage220-240V / 1N / 50HzTotal connected load2.58KwPerformanceTheoretical Max racks/hour40Glasses per rack25Wash tank element2.00kWRinse tank element6.00kWWash tank capacity14.33 LitresRinse tank capacity7.5 LitresRinse water consumption at 3 bar3.00 L/cycleWash tank temperature55°CRinse tank temperature82°CWash pump power0.58kWRinse pump power0.19kWOtherNoise level70dBEmpty weight54.7kgFully loaded weight75.2kgPackaged weight66.6kg

Glasses per rack – 25

Model NoG500DUOHydraulic SpecificationsWater supply connection3/8″ BSPMinimum allowed supply water pressure0.5 barRequired water flow rate11L/minMinimum incoming water temperature4°CMaximum incoming water temperature55°CGravity drain height (from machine base)40mmPumped drain height (from machine base600mmDrain size⌀ 40mmElectrical SpecificationsStandard Set-UpAmps required30A (1 phase)Standard operating voltage220-240V/ 1N / 50HzTotal connected load6.58kWOptional Set-UpAmps required13A (3 phase)Standard operating voltage380-415V / 3N / 50HzTotal connected load6.58KwOptional Set-UpAmps required12A (1 phase)Standard operating voltage220-240V / 1N / 50HzTotal connected load2.58KwPerformanceTheoretical Max racks/hour40Glasses per rack25Wash tank element2.00kWRinse tank element6.00kWWash tank capacity14.33 LitresRinse tank capacity7.5 LitresRinse water consumption at 3 bar3.00 L/cycleWash tank temperature55°CRinse tank temperature82°CWash pump power0.58kWRinse pump power0.19kWOtherNoise level70dBEmpty weight54.7kgFully loaded weight75.2kgPackaged weight66.6kg
