Description

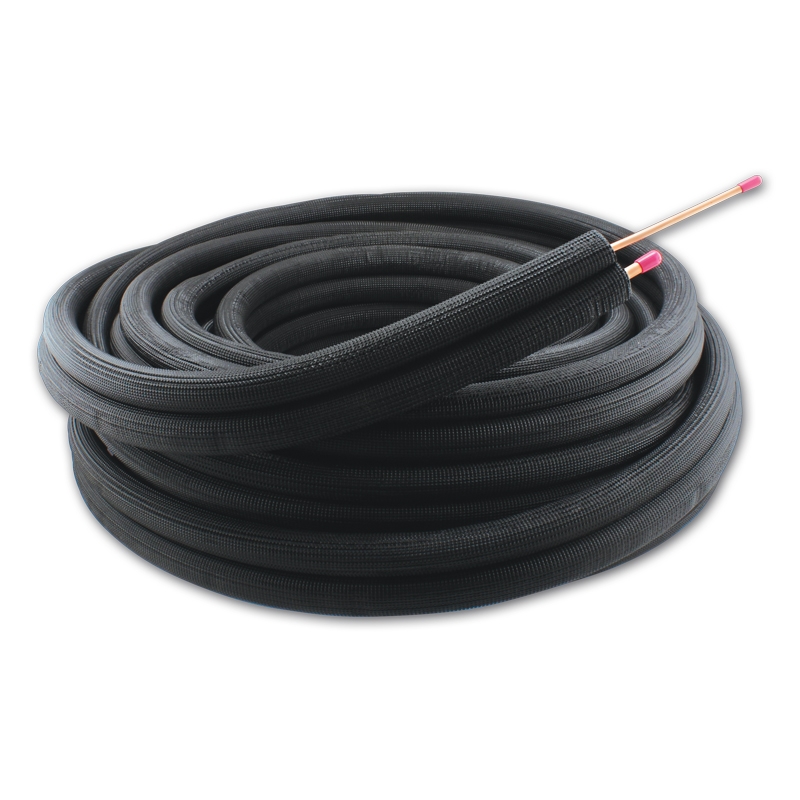

Cooleo Pre-Insulated Black Copper Coil
Cooleo Pre-Insulated Copper comes in 20m Coils of soft copper pipe pre-insulated with 13mm wall fire rated insulation thats bonded together to make pairs of coiled copper pipe in 4 different sizes.
1/4 & 3/8
1/4 & 1/2
1/4 & 5/8
3/8 & 5/8
Cooleo Black pre-Insulated Copper features a special polyethylene outer film that helps to protect the insulation when passing the coil through awkward spaces.
What’s more, it provides UV resistance.
Perfect for split system air conditioners, cellar cooling and any application that uses the pipe sizes shown above.
Cooleo Pre-Insulated Copper makes easy work of installing long pipe runs on VRV and VRF systems considerably reducing installation time therefore reducing labour costs.
It’s durable and tough insulation covering and quality copper coil pipe can be cut to any length, simply re-cap the pipe ends reuse the remainder of the coil on your next installation.
Cooleo Pre-Insulated Copper is easy to join simply hold back the insulation make your braze joint and glue or tape the insulation as you would with any industry standard insulation.
Cooleo Pre-Insulated Copper is easily bent using the Castel Airco Line Set Benders these 4m long solid plastic benders are inserted into each pipe to allow you to make your bends then easily withdrawn (see video) supplied separately under FSW Part Code Q076.
Black Pre-Insulated Copper Technical Specification:
Insulation is manufactured to EN 13501-1, with the following fire ratings:
9mm Black BL.S1.do
13mm Black CL.S2.do
9mm White BL.S1.do
Copper Pipe is manufactured to EN 12735-1
