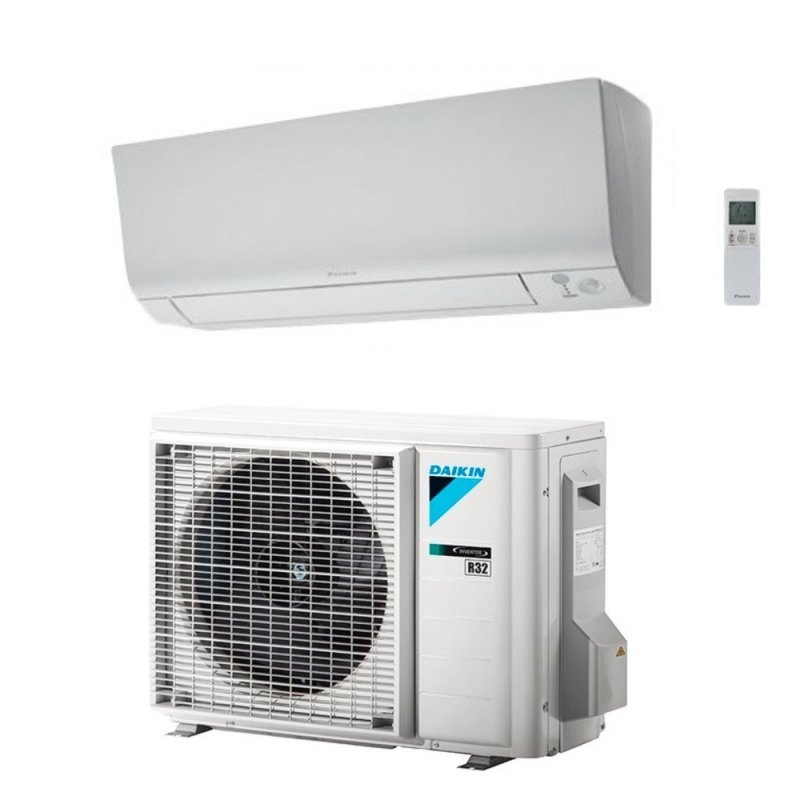

Daikin FTXM60R Air Conditioning System

Warranty: 1 Year Parts Only

Finance from £10.40 per week.

Price match

RRP: £1,358.40£1,574.40 inc VAT£1,312.00 ex VAT

In stock



The Daikin FTXM60R Air Conditioning System makes the perfect indoor climate which is what Daikin units are all about. The Daikin FTXM range is equipped with titanium apatite photocatalytic filters which take away airborne dust particles and decomposes the odours of tobacco and pets, for example. It also traps and even deactivates harmful organic chemical substances like bacteria, viruses and allergens to ensure you enjoy a steady supply of clean air.
These wall mounted units are discreet and make a comfortable atmosphere with lower energy use. A flat, stylish front panel blends in easily with any interior décor and is easier to clean. Vertical auto swing moves the discharge louvres up and down to give you efficient air and temperature distribution all over the room. Turbo mode means that the room can heat up or cool down rapidly, for maximum com-fort. With sound pressure down to 21dBA the new FTXM operates almost unobserved guaranteeing a good night’s sleep.
There is a 24 hour timer that can be set to start heating or cooling anytime during a 24 hour period.

Indoor Model No
Cooling Capacity 6
Heating Capacity 7
Seasonal Efficiency Energy Label (Cooling/Heating) A++/A+
Seasonal Efficiency Pdesign kW (Cooling/Heating) 4.60 – 6.0
Season Efficiency SEER kW (Cooling) 6.90
Seasonal Efficiency SCOP (Heating) 4.30
Seasonal Efficiency Annual Energy Consumption (Cooling/Heating) 304 / 1562
Nominal Efficiency EER / COP 3.39 / 3.61
Air Flow (m3/sec) High / Low / Silent 0.285 / 0.200 / 0.178
Dimensions (mm) Height x Width x Depth 300 x 1040 x 295
Weight (kg) 14.5
Sound Pressure (Cooling) High / Nom / Low (dBa) 46 / 37 / 34
Sound Power Level (dBa) 60
Outdoor Model No
Dimensions (mm) Height x Width x Depth 734 x 870 x 373
Weight (kg) 50
Power Supply Single Phase
Running Current (A) 8.01
Starting Current (A) 6.6
Max Fuse Size (A) 15
Interconnection Wiring (Core / Cable Size) 3+E / 1.5
Pipe Connections (Liquid / Gas) 1/4″ (6.4) / 1/2″ (12.7)
Pipework (Maximum Length) 30
Pipework (Maximum Vertical Rise) 20
Pre-charged to (M) 10
Additional Charge (G/M) 20
Holding Charge (kg) 1.15
Sound Pressure (Cooling) High / Silent Operation (dBa) 48 / 44
Sound Power (dBa) 63

Additional information

Weight 14.5 kg
Cooling Duty (kw)




Additonal Description

Cooling capacity (Min./Nom./Max): / 6.00 / – kW
Heating capacity (Min./Nom./Max): / 7.0 / – kW
Consumption power – cooling (Min./Nom./Max): / 1.77 / – kW
Consumption power – heating (Min./Nom./Max): / 1.94 / – kW
Nominal efficiency EER cooling: 3.39
Seasonal efficiency SEER cooling: 6.9
COP: 3.61
SCOP: 4.3
Annual energy consumption (Cooling/Heating): 304 / 1562 kWh
Energy label (Cooling / Heating): A++ / A+
Operation Range (Cooling): -10 ~ 50 °C
Operation Range (Heating): -20 ~ 24 °C
Indoor unit
Dimensions: 300 x 1040 x 295 H x W x L (mm)
Weight: 14.5 kg
Sound Pressure – cooling (High/Nom./Low/Silent): 46 / – / 37 / 34 dB
Sound Pressure – heating (High/Nom./Low/Silent): 45 / – / 36 / 33 dB
Outdoor unit
Compressor type: Daikin
Dimensions: 734 x 870 x 373 H x W x L (mm)
Weight: 50 kg
Sound Pressure – cooling Nominal: 48 dB
Sound Pressure – heating Nominal: 49 dB


6Kw Cooling and 7Kw Heating

Power Supply

230V / Single Phase / 50Hz

Indoor Depth (mm)


Indoor Height (mm)


Indoor Width


Weight Indoor (kg)


Outdoor Depth (mm)


Outdoor Height (mm)


Outdoor Width (mm)


Weight Outdoor (kg)



1 Year Parts Only
