Description

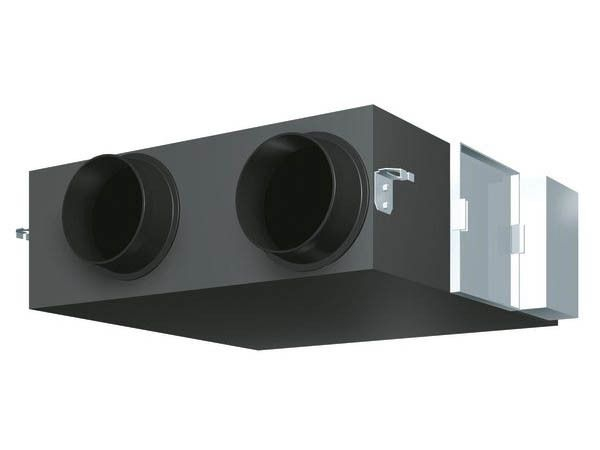

The Daikin VAM150FC9 Ventilation Heat Recovery is an energy saving ventilation using indoor heating, cooling and moisture recovery
Free cooling possible when outdoor temperature is below indoor temperature (eg. during nighttime)
Total solution for fresh air with Daikin supply of both VAM / VKM and electrical heater
Optional medium and fine dust filters M6, F7, F8 to meet customer request or legislation
Shorter installation time thanks to easy adjustment of nominal air flow rate, so less need for dampers compared with traditional installation.
Specially developed heat exchange element with High Efficiency Paper (HEP)
Reduced energy consumption thanks to specially developed DC fan motor
Can be used as standalone or integrated in the Sky Air or VRV system
Wide range of units: air flow rate from 150 up to 2,000 m³/h
Prevent energy losses from over-ventilation while improving indoor air quality with optional CO2 sensor
No drain piping needed
Ideal solution for shops, restaurants or offices requiring maximum floor space for furniture, decorations and fittings
Can operate in over- and under pressure
Remote controller needs to be purchased separately
| Model No | VAM150FC |
| Dimensions HxWxD (mm) | 285 x 776 x 525 |
| Weight (kg) | 24 |
| Duct Connection Diameter (mm) | 100 |
| Air Flow Rate Ultra-High (m3/hr) | 150 |
| Air Flow Rate High (m3/hr) | 140 |
| Air Flow Rate Low (m3/hr) | 105 |
| Air Flow Rate Ultra – High (m3/sec) | 0.042 |
| Air Flow Rate High (m3/sec) | 0.039 |
| Air Flow Rate Low (m3/sec) | 0.029 |
| External Static Pressure Ultra-High (Pa) | 90 |
| External Static Pressure High (Pa) | 87 |
| External Static Pressure Low (Pa) | 40 |
| Sound Pressure Level (Heat Exchange Mode) Ultra-High (dBa) | 27 |
| Sound Pressure Level (Heat Exchange Mode) High (dBa) | 26 |
| Sound Pressure Level (Heat Exchange Mode) Low (dBa) | 20.5 |
| Electrical Power Supply (V / Hz / Phase) | 230 / 50 / 1 |
| Running Current (A) | 0.9 |
| Max Fuse Size (A) | 15 |
