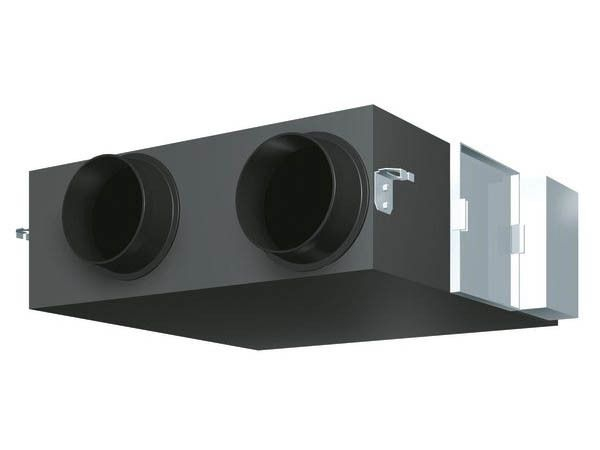

Daikin VAM500J Ventilation Heat Recovery

Warranty: 1 Year Parts Only

Lease from £9.16 per week.

Price match

£1,386.00 inc VAT£1,155.00 ex VAT

In stock

SKU: VAM500J

Description

The Daikin VAM500J Ventilation Heat Recovery is an energy saving ventilation using indoor heating, cooling and moisture recovery

Free cooling possible when outdoor temperature is below indoor temperature (eg. during nighttime)

No drain piping needed

Can be used as standalone or integrated in the Sky Air or VRV system

Optional medium and fine dust filters M6, F7, F8 to meet customer request or legislation

Ideal solution for shops, restaurants or offices requiring maximum floor space for furniture, decorations and fittings

Reduced energy consumption thanks to specially developed DC fan motor

Shorter installation time thanks to easy adjustment of nominal air flow rate, so less need for dampers compared with traditional installation.

Wide range of units: air flow rate from 150 up to 2,000 m³/h

Specially developed heat exchange element with High Efficiency Paper (HEP)

Prevent energy losses from over-ventilation while improving indoor air quality with optional CO2 sensor

Can operate in over- and under pressure

Total solution for fresh air with Daikin supply of both VAM / VKM and electrical heater

Remote controller needs to be purchased separately

Model No VAM500FC
Dimensions HxWxD (mm) 301 x 828 x 816
Weight (kg) 33
Duct Connection Diameter (mm) 200
Air Flow Rate Ultra-High (m3/hr) 500
Air Flow Rate High (m3/hr) 410
Air Flow Rate Low (m3/hr) 310
Air Flow Rate Ultra – High (m3/sec) 0.139
Air Flow Rate High (m3/sec) 0.114
Air Flow Rate Low (m3/sec) 0.086
External Static Pressure Ultra-High (Pa) 83
External Static Pressure High (Pa) 57
External Static Pressure Low (Pa) 35
Sound Pressure Level (Heat Exchange Mode) Ultra-High (dBa) 33.0
Sound Pressure Level (Heat Exchange Mode) High (dBa) 31.5
Sound Pressure Level (Heat Exchange Mode) Low (dBa) 24.5
Electrical Power Supply (V / Hz / Phase) 230 / 50 / 1
Running Current (A) 1.3
Max Fuse Size (A) 15

Additional information

Weight 33 kg
Cooling Duty (kw)

N/A

Manufacturer

Daikin

Additonal Description

Power Supply – 1~, 220-240V, 50Hz
Sound Pressure Level dB(A) Heat Exchange mode (Ultra-high, high, low) – 34.5-35.5, 33-34, 27-28
Bypass mode (Ultra-high, high, low) – 33.5-34.5, 32.5-33.5, 25.5-27.5
Dimensions HxWxD mm – 285 x 812 x 800
Weight kg – 33

Capacity

N/A

Power Supply

230/50/1

Indoor Depth (mm)

816

Indoor Height (mm)

301

Indoor Width (mm)

828

Weight Indoor (kg)

33

Warranty

1 Year Parts Only
