Fujitsu ASYG09KPCA Air Conditioning System

Warranty: 3 Years Parts Only

Installation must be carried out by a qualified F-Gas engineer, find out how we can help you.

Save 34%

Lease from £3.13 per week.

Price match

RRP: £717.60£474.00 inc VAT£395.00 ex VAT

In stock

SKU: ASYG09KPCA/AOYG08KPCA

Description

Compact & Comfort

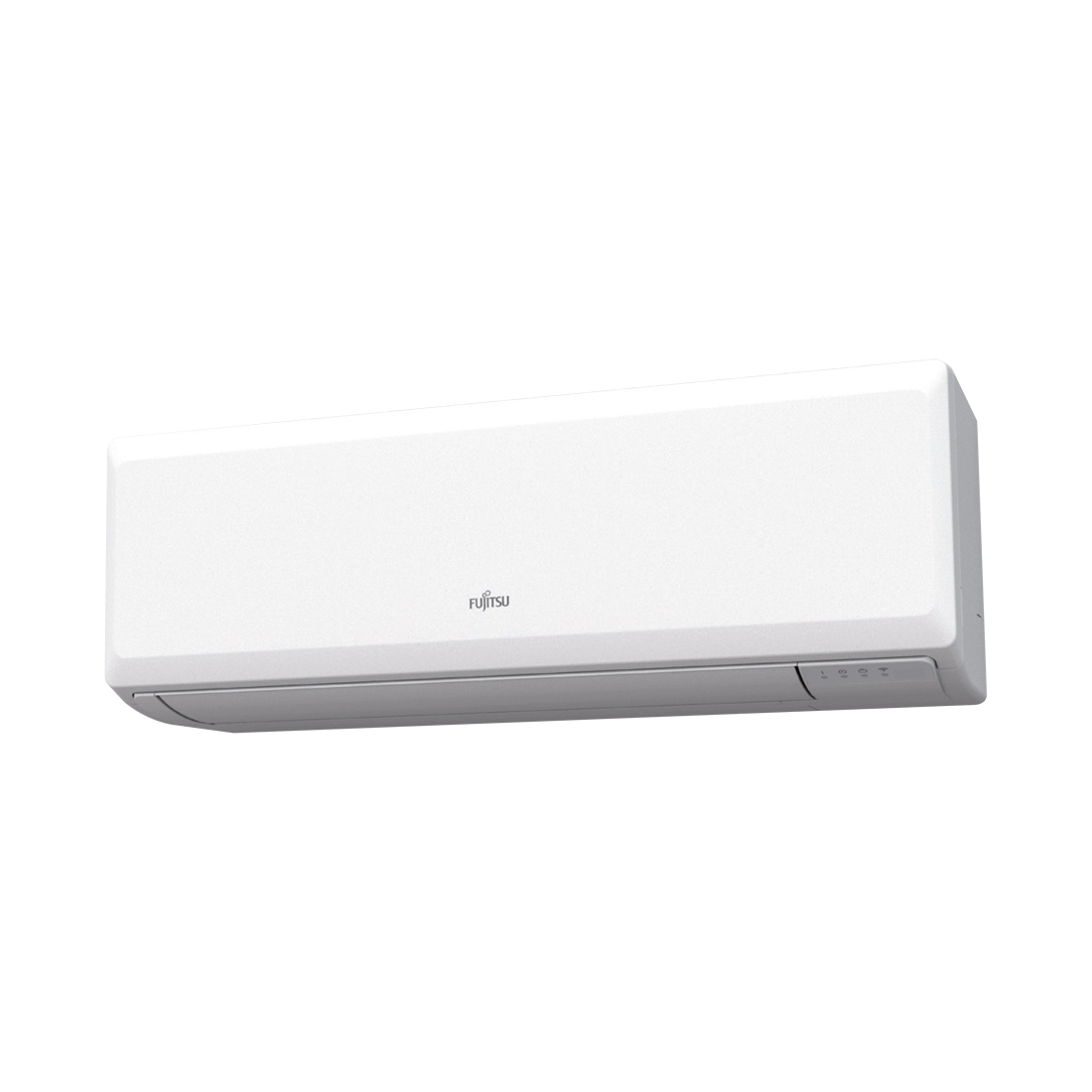

The Fujitsu ASYG09KPCA wall mounted unit offers a broad range of functions designed for large living spaces, offices, bedrooms and children’s bedrooms. Stylish and slim, these elegant wall mounted units complement any interior decor and are suitable for a variety of applications. All Fujitsu air conditioner models feature heat pump inverter technology which are highly efficient in operation and conserve electricity usage.
Key Features
 Slim  and stylish square design – The slim and stylish design of this indoor unit is realised by using a high-density, multi-path heat exchanger and a high-efficiency wind blower
Outstanding energy-saving performance – Outstanding energy efficiency is achieved by using a high-efficiency lamda heat exchanger, a large cross-flow fan, and R32 refrigerant
Comfortable airflow and quiet operation – The combination of a large louvre and an air-blowing structure provides a comfortable, quiet airflow that spreads widely across the floor 22dB(A) in cooling operation
Low ambient operation
Smart device control (optional) – With an optional Wireless LAN Adapter installed in the air conditioner, you can control it from anywhere with your smart device. Installing the adapter does not require any technical work.
R32 Refrigerant – Protect the planet by reducing the impact of climate change

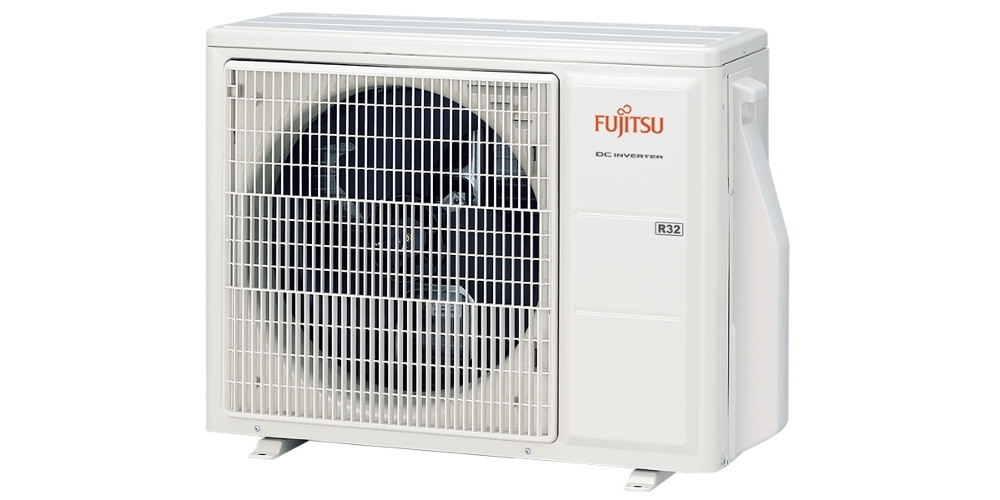

Indoor / Outdoor Model No ASYG09KPCA / AOYG09KPCA
Nominal Cooling Capacity (Range) 2.5 (0.9 – 3.00)
Heating Capacity (Range) 2.8 (0.9 – 3.8)
EER Cooling / COP Heating 3.52 / 3.54
SEER/ Energy Efficiency Class – Cooling 6.70 / A++
SCOP / Energy Efficiency Class – Heating 4.00 / A+
Annual Energy Consumption Cool / Heat KWh/a 131 / 840
Pdesign Cooling / Heating (-10°C) kW 2.5 / 2.4
Indoor Dimensions (H x W x D) mm 270 x 784 x 224
Outdoor Dimensions  (H x W x D) mm 541 x 663 x 290
Sound Pressure Level Indoor min/max dB(A) 22 / 45
Pipe Size (Liquid – Gas) mm 1/4″ / 3/8″
Min-Max Pipe Len. (Pre-charge) / Height Diff. (m) 3 – 20 (15) / 15
Additional Refrigerant Charge  g/m 20
Ref. Type  (Global Warming Potential R32 (675)
Refrigerant charge  kg/CO2eq-T 0.55 / 0.371
Power Source / Suggested Fuse Size 1Ph-230V-50Hz – 10
Weight Indoor / Outdoor (kg) 8.00 / 23.0

Additional information

Manufacturer

Fujitsu

Cooling Duty (kw)

2.5kw

Indoor Height (mm)

270

Indoor Width (mm)

784

Indoor Depth (mm)

224

Outdoor Height (mm)

541

Outdoor Width (mm)

663

Outdoor Depth (mm)

290

Weight Indoor (kg)

8

Weight Outdoor (kg)

23kg

Warranty

3 Years Parts Only

F Gas

Yes
