Description

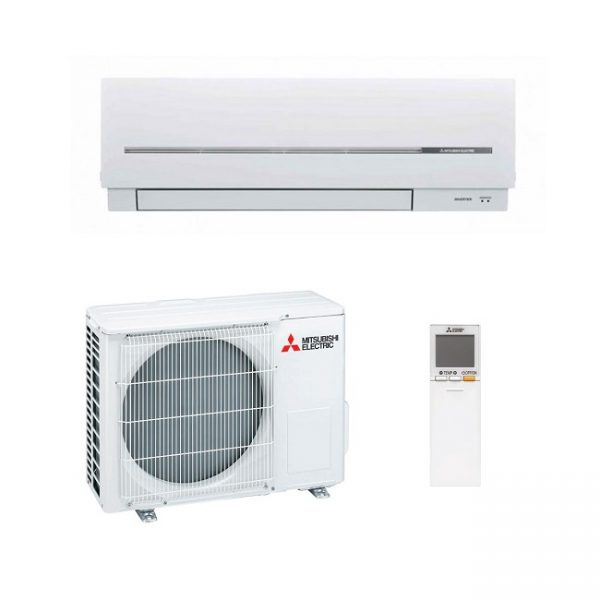

The Mitsubishi Electric MSZ-AP35VGK Wall Mounted Air Conditioning system uses the latest R32 Mitsubishi Electric inverter compressor technology. This unit is designed specifically for comfort cooling and heating, these units have extremely quiet sound levels, whilst also delivering economical air conditioning, with improved EER figures. The MSZ-AP35V is designed to heat or cool small to medium sized applications, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. The M-Series range provides a versatile, yet affordable air conditioning solution.
| Indoor Model No | MSZ-AY35VGK |
| Heating (nominal) | 4.0 (1.3-4.6) |
| Cooling (nominal) | 3.5 (1.1-3.8) |
| Heating (UK) | 3.3 (1.1-3.8) |
| Cooling (UK) | 3.47 (1.1-3.8) |
| SHF (nominal) | 0.88 |
| COP/EER (nominal) | 3.88 / 3.54 |
| SCOP/SEER (BS 14825) | 4.70 / 8.60 |
| Erp Energy Efficiency Class Heating/Cooling | A++ / A+++ |
| Airflow (l/s) Heating (SLo-Lo-Mid-Hi-Shi) | 82-98-122-148-215 |
| Airflow (l/s) Cooling (SLo-Lo-Mid-Hi-Shi) | 82-98-118-145-190 |
| Pipe Sizes MM (in) | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBA) – Heating (SLo-Lo-Mid-Hi-Shi) | 19-24-31-38-45 |
| Sound Pressure Level (dBA) – Cooling (SLo-Lo-Mid-Hi-Shi) | 19-24-30-36-42 |
| Sound Power Level (dBA) | 57 |
| Dimensions (mm) WxDxH | 798 x 219 x 299 |
| Weight (kg) | 10.5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No. Cores | 4 |
| Outdoor Unit Model No | MUZ-AY35VG |
| Sound Pressure Level (dBA) Heating / Cooling | 50 / 49 |
| Sound Power Level (dBA) Cooling | 61 |
| Weight (kg) | 31 |
| Dimensions (mm) WxDxH | 800 x 285 x 550 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kW) Heating / Cooling -Nominal | 1.03 / 0.99 |
| System Power Input (kW) Heating / Cooling -UK | 0.93 / 0.83 |
| Starting Current (A) | 4.7 |
| System Running Current (A) Heating / Cooling (Max) | 4.7 / 4.5 (8.46) |
| Fuse Rating (BS88) – HRC (A) | 10 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m | 0.55 / 0.37 |
| Max Additional Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.26 / 0.18 |
