Description

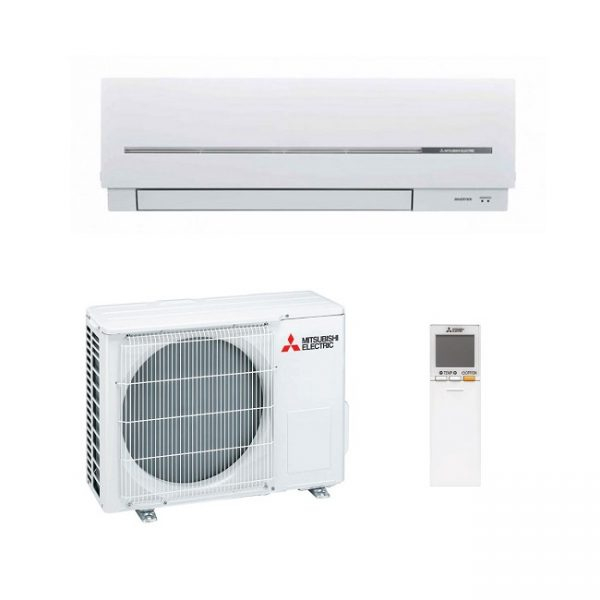

The Mitsubishi Electric MSZ–AP71VGK wall mounted air conditioning system boasts outstanding benefits, this mid-range unit contains state-of-the-art Wi-Fi control as standard and uses low GWP R32 refrigerant. Alongside this, the wide diameter of the fan produces greater airflow at lower fan speeds and the uneven pitch between each fan blade helps to eliminate unwanted noise. These units have very quiet sound levels, whilst also delivering cost-effective air conditioning, with improved EER figures.
| Indoor Model No | MSZ-AP71VGK |
| Heating (nominal) | 8.0 (2.2 – 10.3) |
| Cooling (nominal) | 7.1 (2.0 – 8.7) |
| Heating (UK) | 6.68 (1.8 – 8.6) |
| Cooling (UK) | 7.04 (2.0 – 8.6) |
| SHF (nominal) | 0.77 |
| COP/EER (nominal) | 3.82 / 3.53 |
| SCOP/SEER (BS 14825) | 4.40 / 7.20 |
| Erp Energy Efficiency Class Heating/Cooling | A+ / A++ |
| Airflow (l/s) Heating (SLo-Lo-Mid-Hi-Shi) | 170-192-220-255-320 |
| Airflow (l/s) Cooling (SLo-Lo-Mid-Hi-Shi) | 160-192-220-255-310 |
| Pipe Sizes MM (in) | 12.7 (1/2″) / 6.35 (1/4″) |
| Sound Pressure Level (dBA) – Heating (Slo-Lo-Mid-Hi-Shi) | 30-37-41-45-51 |
| Sound Pressure Level (dBA) – Cooling (Slo-Lo-Mid-Hi-Shi) | 30-37-41-45-49 |
| Sound Power Level (dBA) | 65 |
| Dimensions (mm) WxDxH | 1100 x 257 x 325 |
| Weight (kg) | 17 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No. Cores | 4 |
| Outdoor Unit Model No | MUZ-AP71VG |
| Sound Pressure Level (dBA) Heating / Cooling | 55 / 55 |
| Sound Power Level (dBA) Cooling | 65 |
| Weight (kg) | 55 |
| Dimensions (mm) WxDxH | 840 x 330 x 880 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kW) Heating / Cooling -Nominal | 2.12 / 2.01 |
| System Power Input (kW) Heating / Cooling -UK | 1.91 / 1.68 |
| Starting Current (A) | 9.3 |
| System Running Current (A) Heating/Cooling (Max) | 9.3 / 8.8 (16.4) |
| Fuse Rating (BS88) – HRC (A) | 20 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 30 |
| Max Height Difference (m) | 15 |
| Charge Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m | 1.50 / 1.02 |
| Max Additional Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.30 / 0.21 |
