Mitsubishi Electric MSZ-HR50VF Wall Mounted Air Conditioning System

Warranty: 3 Years Parts Only

Installation must be carried out by a qualified F-Gas engineer, find out how we can help you.

Finance from £7.03 per week.

Price match

RRP: £906.00£1,064.40 inc VAT£887.00 ex VAT

Key Features

• Optional Wi-Fi interface allows for convenient control and monitoring via the MELCloud app.
• Daily timer feature provides greater control over scheduling for enhanced energy efficiency.
• Available in capacities up to 7.1kW, offering flexibility for various room sizes and requirements.


In stock



R32 Refrigerant

R32 is the next generation refrigerant that boasts nearly 70% lower Global warming potential rate that R410A. Due to its superior qualities R32 offers amazing energy efficiency benefits. It has a potential refrigerating effect 1.5 times that of R410A meaning it needs less energy to achieve the desired temperature and requires less refrigerant volume to operate.

Product Description

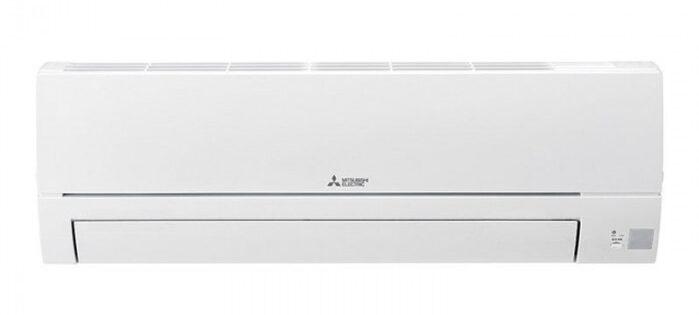

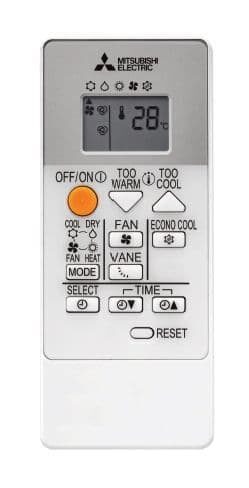

The Mitsubishi Electric MSZ-HR50VF wall mounted air conditioning system is designed to heat or cool small to medium sized applications. The unit is designed specifically for comfort cooling and heating, these units have very quiet sound levels, whilst also delivering economical air conditioning. The classic MSZ-HR50VF is a flat panel wall mounted model and has Mitsubishi Electric inverter compressor technology, This units features can be controlled by the handheld controller, there is also an option to control the air conditioning system by your mobile device using the MELCloud App.

Indoor Model No MSZ-HR50VF
Heating (nominal) 5.40 (1.4 – 6.5)
Cooling (nominal) 5.00 (1.3 – 5.0)
Heating (UK) 4.48 (1.16 – 5.39)
Cooling (UK) 4.96 (1.29 – 4.96)
SHF (nominal) 0.73
COP/EER (nominal) 3.48 / 2.44
SCOP/SEER (BS 14825) 4.30 / 6.50
Erp Energy Efficiency Class Heating/Cooling A+ / A++
Airflow (l/s) Heating (SLo-Lo-Mid-Hi-Shi) 102-138-187-242
Airflow (l/s) Cooling (SLo-Lo-Mid-Hi-Shi) 107-153-187-218
Pipe Sizes MM (in) 9.52 (3/8″) / 6.35 (1/4″)
Sound Pressure Level (dBA) – Heating (Lo-Mid-Hi-Shi) 27-34-41-47
Sound Pressure Level (dBA) – Cooling (Lo-Mid-Hi-Shi) 28-36-40-45
Sound Power Level (dBA) 60
Dimensions (mm) WxDxH 838 x 228 x 280
Weight (kg) 9
Electrical Supply Fed by Outdoor Unit
Fuse Rating (BS88) – HRC (A) 6
Interconnecting Cable No. Cores 4

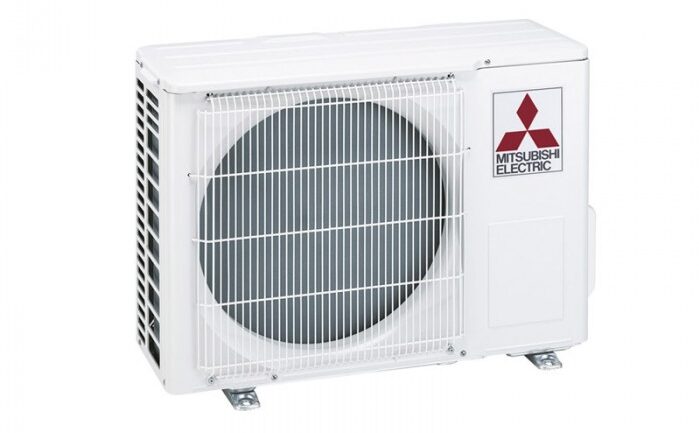

Outdoor Unit Model No MUZ-HR50VF
Sound Pressure Level (dBA) Heating / Cooling 51 / 50
Sound Power Level (dBA) Cooling 64
Weight (kg) 35
Dimensions (mm) WxDxH 800 x 285 x 550
Electrical Supply 220-240v, 50Hz
Phase Single
System Power Input (kW) Heating / Cooling -Nominal 1.55 / 2.05
System Power Input (kW) Heating / Cooling -UK 1.40 / 1.62
Starting Current (A) 9.0
System Running Current (A) Heating/Cooling (Max) 6.9 / 9.0 (9.6)
Fuse Rating (BS88) – HRC (A) 16
Mains Cable No. Cores 3
Max Pipe Length (m) 20
Max Height Difference (m) 12
Charge Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m 0.80 / 0.54
Max Additional Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) 0.26 / 0.18

Additional information

Cooling Duty (kw)



Mitsubishi Electric

Additonal Description

Compact and stylish white design
Highly energy efficient, utilising low GWP refrigerant
Power supply to outdoor unit
Built in CN105 allowing connection to the optional MAC-567IF-E Wi-Fi interface, enabling control and monitoring using a smartphone, table or PC via the MELCloud app

Indoor Depth (mm)


Indoor Height (mm)


Indoor Width (mm)


Weight Indoor (kg)


Outdoor Depth (mm)


Outdoor Height (mm)


Outdoor Width


Weight Outdoor (kg)
