Mitsubishi Electric PLA-M100EA 4-Way Blow Ceiling Cassette Air Conditioning System

Warranty: 3 Years Parts Only

Installation must be carried out by a qualified F-Gas engineer, find out how we can help you.

Save 3%

Lease from £16.52 per week.

Price match

RRP: £2,572.80£2,500.80 inc VAT£2,084.00 ex VAT

In stock

SKU: PLA-M100EA / PUZ-M100VKA

Description

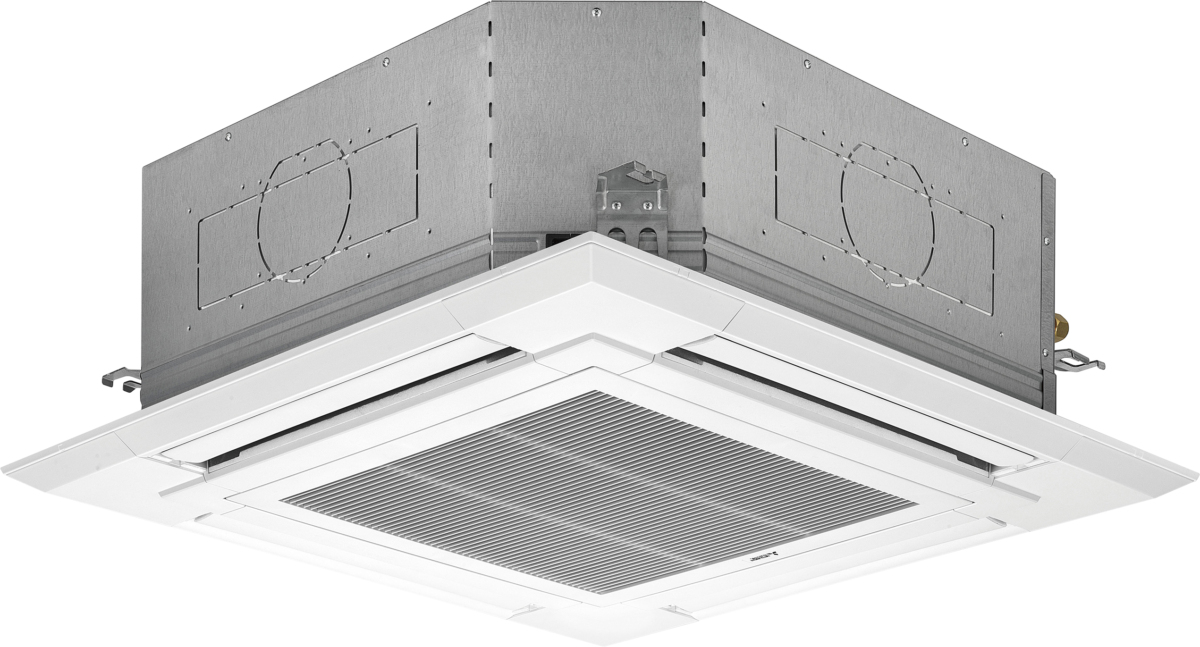

The Mitsubishi Electric PLA-M100EA 4-Way large capacity ceiling cassette air conditioning system comes with 3D i-See Sensor technology, wide airflow, independent vane direction setting and a new sleek design which provides consistent temperatures throughout the space you need to heat or cool. this system is perfect for residential rooms or office spaces. This system comes standard with a Deluxe Wireless Controller.

Indoor Model No PLA-M100EA
Cooling Capacity (kW) 9.5 (4.00 – 10.6)
Heating Capacity (kW) 11.2 (2.8 – 12.5)
SHF (nominal) 0.77
COP / EER (nominal) 3.71 / 3.50
SCOP / SEER (BS EN14825) 4.60 / 7.00
ErP Energy Efficiency Class Heating/Cooling A++ / A++
Airflow (l/s) Lo-Mi-Mi2-Hi 317 – 383 – 433 – 483
Pipe Sizes mm (in) Gas / Liquid 15.88 (5/8″) / 9.52 (3/8″)
Sound Pressure Level (dBA) Lo Mi-Mi2-Hi 31 – 34 – 37 – 40
Sound Power Level (dBA) 61
Dimensions (mm) W x D x H (Grille) 840 (950) x 840 (950) x 298 (40)
Weight (kg) 24 / 5
Electrical Supply Fed by the Outdoor Unit
Fuse Rating (BS88) – HRC (A) 6
Interconnecting Cable No. Cores 4
Grille Reference PLP-6EA
Wired Remote Controller Reference PAR-40MAA
Wireless Remote Controller Reference PAR-SL100A-E

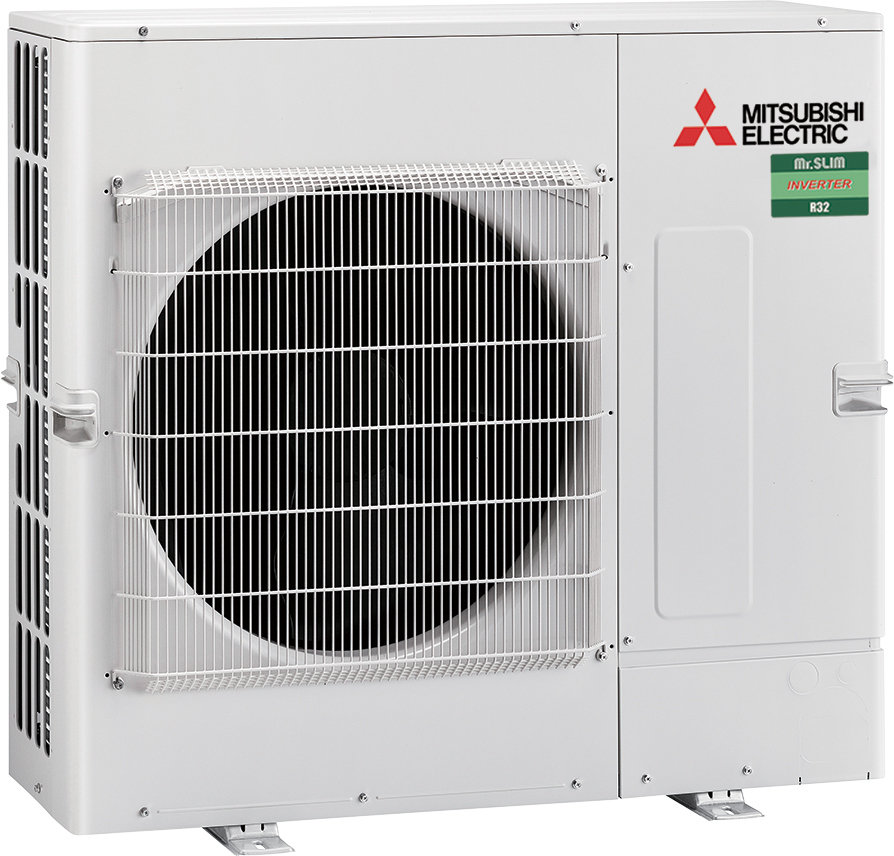

Outdoor Model Number PUZ-M100VKA
Sound Pressure Level (dBA) Heating /Cooling 51 / 54
Sound Power Level (dBA) Cooling 70
Weight (kg) 76
Dimensions (mm) W x D x H 1050 x 330 x 981
Electrical Supply 220-240v, 50Hz
Phase Single
System Power Input (kW) Heating / Cooling (nominal) 3.01 / 2.71
System Power Input (kW) Heating / Cooling (UKl) 2.71 / 2.50
Starting Current (A) 13.0
System Running Current (A) Heating / Cooling (MAX) 13.0 / 11.7 (20)
Fuse Rating (BS88) – HRC (A) 32
Mains Cable No. Cores 3
Max Pipe Length (m) 55
Max Height Difference (m) 30
Charge Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675 3.10 / 2.09
Max Additional Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675 4.10 / 2.77

Additional information

Cooling Duty (kw)

10.0kw

Manufacturer

Mitsubishi Electric

Capacity

9.5kW Cooling & 11.2kW Heating

Power Supply

220V – 240V Single Phase

Indoor Depth (mm)

840 (950)

Indoor Height (mm)

298 (40)

Indoor Width (mm)

840 (950)

Weight Indoor (kg)

24kg

Outdoor Depth (mm)

330

Outdoor Height (mm)

981

Outdoor Width (mm)

1050

Weight Outdoor (kg)

76kg

Warranty

3 Years Parts Only
