Description
Operational Range
Cooling operation range: -10°C to +46°C
Heating operation range: -15°C to +24°
Suitable Room Size
MSZ-EF25VG B/S/W: Suitable for small to medium-sized rooms. Estimated coverage: 20-25 square meters.
Product Description

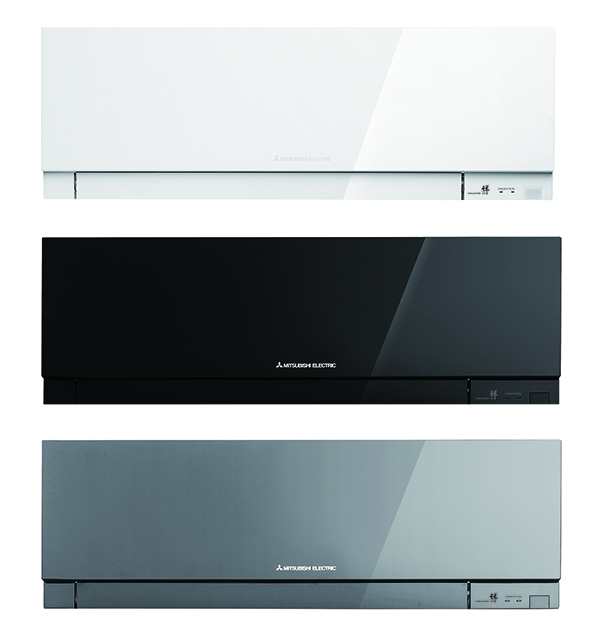

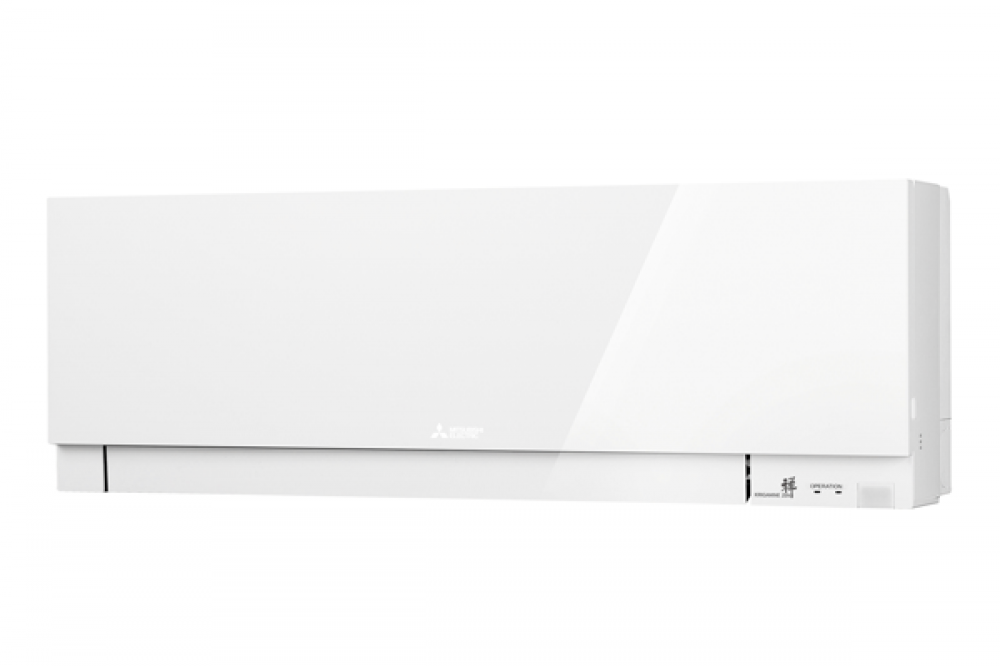

The Mitsubishi Electric MSZ-EF R32 Zen Wall Mounted Air Conditioning System. This sleek and stylish unit, available in black, silver, or white, seamlessly combines energy-efficient operation with powerful heating and cooling capabilities.<h3> Product Description

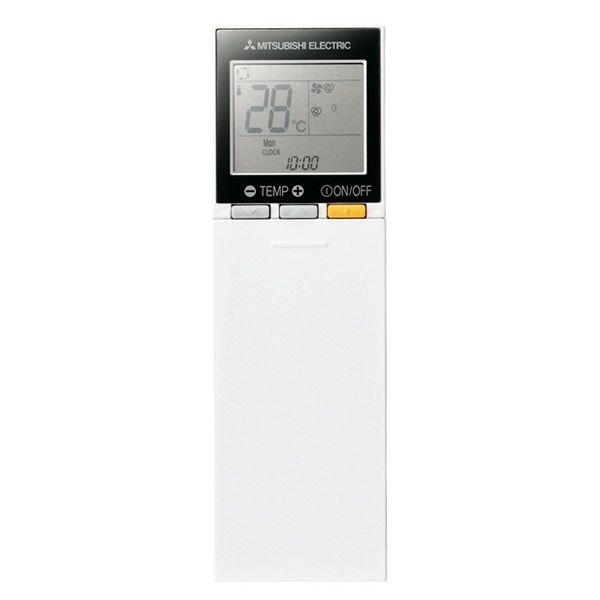

The Mitsubishi Electric MSZ-EF R32 Zen Wall Mounted Air Conditioning System. This sleek and stylish unit, available in black, silver, or white, seamlessly combines energy-efficient operation with powerful heating and cooling capabilities. Recognised for its industry-leading low noise levels, the Zen Series features a uniquely styled front panel for easy cleaning. Designed to complement modern interiors effortlessly, this system seamlessly blends into any space. The included universal controller, with a built-in 7-day time clock, enhances control and energy savings. Experience the perfect balance of efficiency and sophistication with Mitsubishi Electric’s Zen Series. Recognised for its industry-leading low noise levels, the Zen Series features a uniquely styled front panel for easy cleaning. Designed to complement modern interiors effortlessly, this system seamlessly blends into any space. The included universal controller, with a built-in 7-day time clock, enhances control and energy savings. Experience the perfect balance of efficiency and sophistication with Mitsubishi Electric’s Zen Series
| Indoor Model No | MSZ-EF25VG – W |
| Cooling Capacity | 2.5 (1.2-3.4) |
| Heating Capacity | 3.2 (1.1-4.2) |
| SHF (nominal) | 0.92 |
| COP / EER (nominal) | 4.57 / 4.59 |
| SCOP / SEER (BSEN14825) | 4.7 / 8.5 |
| ErP Energy Efficiency Class (Heating & Cooling) | A++ / A+++ |
| Air Flow (l/s) Heating (SLo-Lo-Mid-Hi-SHi) | 67-77-103-148-198 |
| Air Flow (l/s) Cooling (SLo-Lo-Mid-Hi-SHi) | 67-77-105-138-175 |
| Pipe Sizes mm (in) Gas / Liquid | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBa) Heating (Slo-Lo-Mid-Hi-SHi | 21-24-29–37-45 |
| Sound Pressure Level (dBa) Cooling (Slo-Lo-Mid-Hi-SHi | 21-23-29-36-42 |
| Sound Power Level (dBa) | 60 |
| Dimensions (mm) Width x Depth x Height | 885 x 195 x 299 |
| Weight (kg) | 11.5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No Cores | 4 |

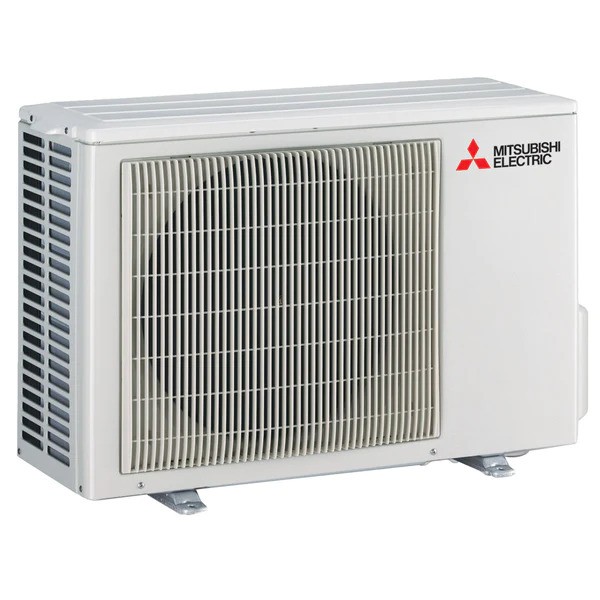

| Outdoor Model No | MUZ-EF25VE |
| Sound Pressure Level (dBa) Heating / Cooling | 48 / 47 |
| Sound Power Level (dBa) Cooling | 58 |
| Weight (kg) | 30 |
| Dimensions (mm) Width x Depth x Height | 800 x 285 x 550 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kw) Heating / Cooling (Nominal) | 0.700 / 0.545 |
| System Power Input (kw) Heating / Cooling (UKl) | 0.64 / 0.44 |
| Starting Current (A) | 3.50 |
| System Running Current (A) Heating / Cooling (MAX) | 3.5 / 2.9 (7.3) |
| Fuse Rating (BS88) -HRC (A) | 10 |
| Mains Cable No Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge R410a (kg) – 7m | 0.8 |
