Mitsubishi Electric Zen MSZ-EF50VG Wall Mounted 5kw Air Conditioning System-White

Warranty: 3 Years Parts Only
Save 3%

Lease from £8.28 per week.

Price match

RRP: £1,288.80£1,252.80 inc VAT£1,044.00 ex VAT

In stock

SKU: MSZ-EF50VGW

Description

The Mitsubishi Electric MSZ-EF50VG White Zen wall mounted air conditioning system blends energy efficiency with a sophisticated, streamlined design.
Combining an impressively low power consumption with a quiet, yet powerful performance, units have a distinctively styled front panel that not only looks appealing, but also helps to make cleaning of the unit easier.

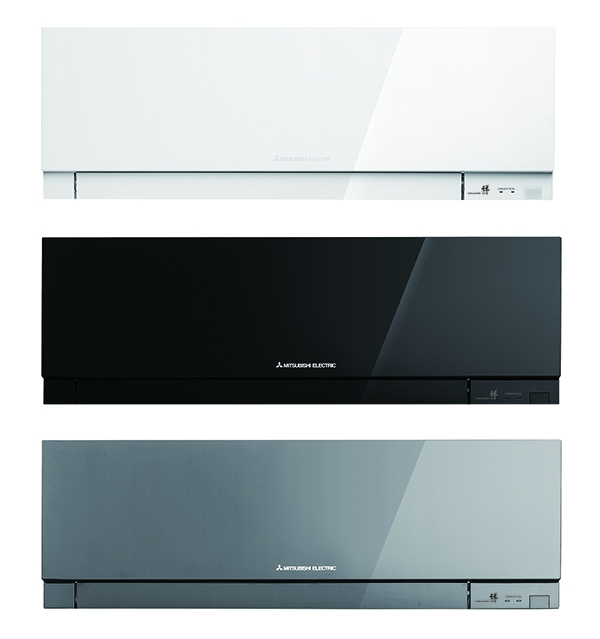

Designed to complement modern interior décor and suitable for a wide range of applications, Zen units blend in naturally wherever they are installed and are available in three striking colours; black, silver and white.
To aid control and energy saving, the new universal controller has an in built 7 day timeclock.

Indoor Model No MSZ-EF50VG – W
Cooling Capacity 3.5 (1.-4.0)
Heating Capacity 4.0 (1.8-5.5)
SHF (nominal) 0.80
COP / EER (nominal) 4.19 / 3.85
SCOP / SEER (BSEN14825) 4.6 / 8.5
ErP Energy Efficiency Class (Heating & Cooling) A++ / A+++
Air Flow (l/s) Heating (SLo-Lo-Mid-Hi-SHi) 67-77-103-148-212
Air Flow (l/s) Cooling (SLo-Lo-Mid-Hi-SHi) 67-77-105-138-175
Pipe Sizes mm (in) Gas / Liquid 9.52 (3/8″)  / 6.35 (1/4″)
Sound Pressure Level (dBa) Heating (Slo-Lo-Mid-Hi-SHi 21-24-30–38-46
Sound Pressure Level (dBa) Cooling (Slo-Lo-Mid-Hi-SHi 21-24-29-36-42
Sound Power Level (dBa) 60
Dimensions (mm) Width x Depth x Height 885 x 195 x 299
Weight (kg) 11.5
Electrical Supply Fed by Outdoor Unit
Fuse Rating (BS88) – HRC (A) 6
Interconnecting Cable No Cores 4
Outdoor Model No MUZ-EF50VE
Sound Pressure Level (dBa) Heating / Cooling 50 / 49
Sound Power Level (dBa) Cooling 61
Weight (kg) 35
Dimensions (mm) Width x Depth x Height 800 x 285 x 550
Electrical Supply 220-240v, 50Hz
Phase Single
System Power Input (kw) Heating / Cooling (Nominal) 0.955 / 0.910
System Power Input (kw) Heating / Cooling (UKl) 0.87 / 0.73
Starting Current (A) 4.4
System Running Current (A) Heating / Cooling (MAX) 4.4 / 4.2 (8.5)
Fuse Rating (BS88) -HRC (A) 10
Mains Cable No Cores 3
Max Pipe Length (m) 20
Max Height Difference (m) 12
Charge R410a (kg) – 7m 1.15

Additional information

Cooling Duty (kw)

5.0kw

Manufacturer

Mitsubishi Electric

Additonal Description

High CoP, up to record 3.7 R32
Advanced technology control
Infra-red controller
Slim artistic construction
Pipe runs up to 20 metres
Low noise – 21dBA on smaller models
Fault diagnosis
Auto re-start after power interruption
Pre-Charged with refrigerant for up to 7metres pipe length
Easy cleaned & serviced.

Capacity

5.0Kw Cooling & 5.8Kw Heating

Power Supply

220-240V Single Phase, 50Hz

Indoor Depth (mm)

195

Indoor Height (mm)

299

Indoor Width (mm)

885

Weight Indoor (kg)

11.5kg

Outdoor Depth (mm)

330

Outdoor Height (mm)

880

Outdoor Width (mm)

840

Weight Outdoor (kg)

54kg

Warranty

3 Years Parts Only
