Description

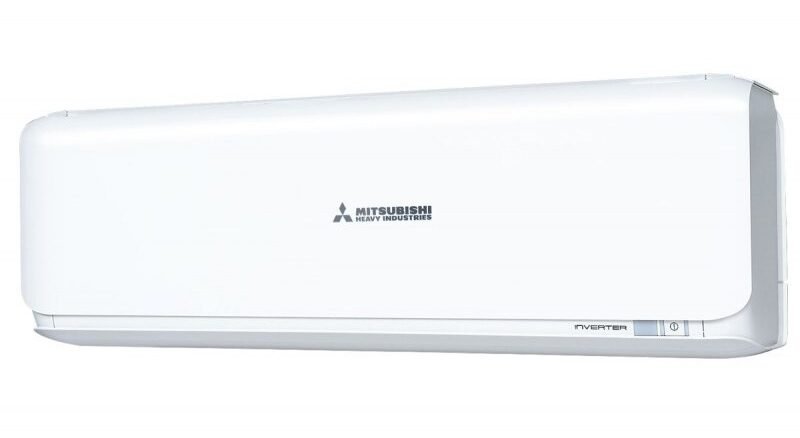

The Mitsubishi SRK63ZR-WF is one of the larger wall mounted heat pump and air conditioner systems from Mitsubishi.
These powerful systems are suitable for providing full climate control with rooms up to 60 square metres.
They are very popular systems for providing heating and cooling to small shops and hairdresser shops as an example.
Each system comes with a handheld controller which has features such as a full weekly timer facility with up to 4 on/off times per day. Built in WiFi allows you to control your air conditioning from your smart device, anywhere.
The SRK63ZR-WF are also very economical to run in both heating and cooling mode and will automatically control temperature in the room being controlled.
Indoor / Outdoor Model No | SRK63ZR-WF / SRC63ZR-W |
Nominal Cooling (Range) kW | 6..3 (1.2 – 7.1) |
UK Cooling (Total – Sensible) kW | 6.0 – 5.1 |
Nominal Heating (Range) | 7.1 (0.8 – 9.0) |
UK Heating kW | 5.1 |
SEER -SCOP (Cool – Heat) | 7.6 – 4.7 |
EER – COP (Cool – Heat) | 3.41 – 4.08 |
Energy Label (Cool / Heat) | A++ / A++ |
ECA | Yes |
Cooling °C | 46 to -15 |
Heating °C | 24 to -15 |
Indoor Unit Dimensions (H-W-D) mm | 339 – 1197 – 262 |
Outdoor Unit Dimensions (H-W-D) mm | 640 – 800 (+71) – 290 |
Weight (Indoor / Outdoor) kg | 15.5 – 45 |
Indoor Unit Airflow Rate Cool (L-M-H) l/s | 15.7 – 18.1 – 20.5 |
Indoor Unit Airflow Rate Heat (L-M-H) l/s | 16.5 – 19.0 – 23.5 |
Static Pressure Pa | 0 |
Indoor Sound Pressure Cool (L-M-H) dB(A) | 35 – 39 – 44 |
Indoor Sound Pressure Heat (L-M-H) dB(A) | 34 – 38 – 44 |
Outdoor Sound Pressure )Cool – Heat) dB(A) | 54 -54 |
Pipe Sizes (Gas – Liquid) in | 1/2″ – 1/4″ |
Pipe Limits (Max Run – Height Diff) m | 30 – 20 |
Pre Charged For (m) | 15 |
Charge R410a (Factory – Additional) kg | 1.55 – 20g/m |
Suitable for Replacement Tech | Yes |
Indoor Drain Connection (mm) | VP16 (14id 16od |
Power Supplt (Outdoor) V-PH-Hz | 230 – 1 – 50 |
Interconnecting Cables | 3 core + E |
Running Current (Cool – Heat) A | 8.1 – 7.6 |
Power Consumption (Cool – Heat) kW | 2.35 – 2.4 |
Start – Max Run Current (A) | 8.1 – 14.5 |
Suggested Fuse Size (A) | 16 |
