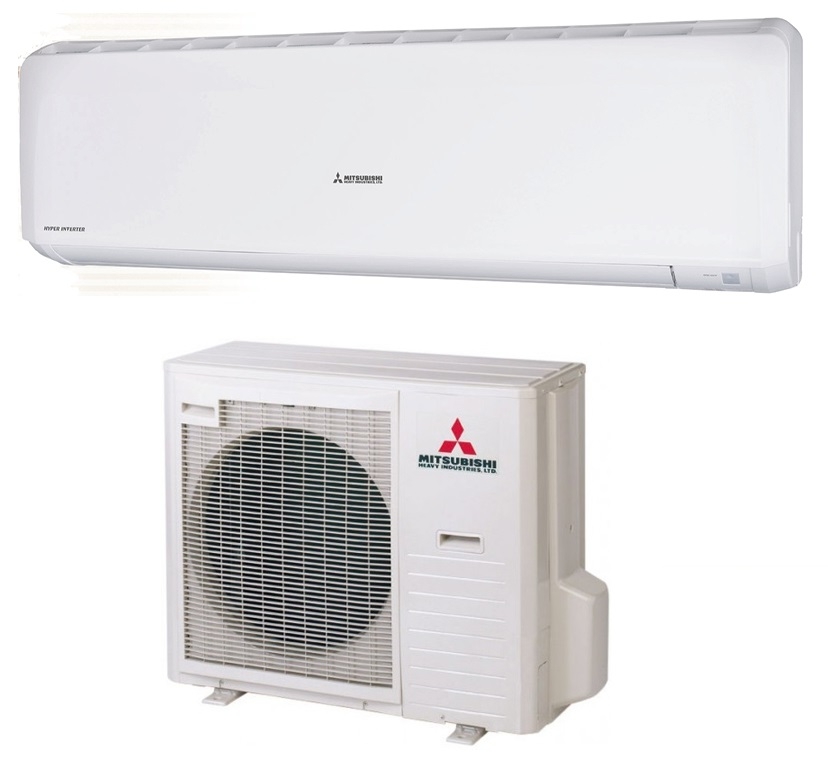

Mitsubishi Heavy Industries SRK80ZR-WF Air Conditioning System

Warranty: 3 Years Parts Only

Installation must be carried out by a qualified F-Gas engineer, find out how we can help you.

Save 20%

Finance from £11.28 per week.

Price match

RRP: £2,127.60£1,707.60 inc VAT£1,423.00 ex VAT

In stock



The Mitsubishi Heavy Industries SRK80ZR-WF Wall Mounted 8kw Air Conditioning System is the NEW ADVANCED SRK Units that have a new ‘smooth line’ design of fascia, which has a lower profile flatter appearance, and is far more easy to keep clean. The SRK now comprises the Mitsubishi innovative NATURAL ENZYME FILTER which extinguishes funghi, bacteria and viruses. This, combined with the main Photocatalytic Washable Deodorizing Filter, provides healthy clean air for the occupants.
MITSUBISHI has used its inventive technology of compressor design, and the ozone friendly R410A refrigerant, and merged this with their new “jet-flow” low noise air movement fan arrangement. The result is a silent, high performance cooling and heating system, with sophisticated electronic controls for maximum comfort, manageable and energy efficient.
The new slim profile indoor unit has a reduced height of 294mm, allowing installation above door openings and windows. The new multiple stage heat exchanger is folded to form a surround to the upper section of the fan enclosure. This ensures low air velocity, and reduced sound levels, whilst delivering high performance and efficiency. Built in WiFi allows you to control your air conditioning from your smart device, anywhere.

Indoor / Outdoor Model No SRK80ZR-WF / SRC80ZR-W
Nominal Cooling (Range) kW 8.0 (2.3 – 9.0)
UK Cooling (Total – Sensible) kW 7.6 – 6.3
Nominal Heating (Range) kW 9.0 (2.1 – 10.5)
UK Heating kW 6.5
SEER – SCOP (Cool – Heat) 6.6 – 4.4
EER – COP (Cool – Heat) 3.40 – 3.75
Energy Label (Cool – Heat) A++ / A+
Cooling °C 46 ti -15
Heating °C 24 to -15
Indoor Unit Dimensions (H-W-D) mm 339 – 1197 – 262
Outdoor Unit Dimensions (H-W-D) mm 750 – 880 (+88) – 340
Weight (Indoor – Outdoor) kg 16.5 – 58.5
Indoor Unit Airflow Rate Cool (L-M-H) l/s 17.5 – 20.2 – 23.5
Indoor Unit Airflow Rate Heat (L-M-H) l/s 18.4 – 21.3 – 26.5
Static Pressure 0
Indoor Sound Pressure Cool (L-M-H) dB(A) 39 – 44 – 47
Indoor Sound Pressure Heat (L-M-H) dB(A) 36 – 41 – 47
Outdoor Sound Pressure (Cool – Heat) dB(A) 56 – 55
Pipe Sizes (Gas – Liquid) in 5/8″ – 1/4″
Pipe Limits (Max Run – Height Diff) m 30 – 20
Pre Charged For 15
Charge R410A (Factory – Additional) kg 1.9 – 25g/m
Suitable for Replacement Tech. Yes
Indoor Drain Connection (mm) VP16 (14id 16od)
Power Supply (Outdoor) V-Ph-Hz 230 – 1 – 50
Interconnecting Cables 3 core + E
Running Current (Cool – Heat) A 10.4 – 10.5
Power Consumption (Cool – Heat) kW 2.35 – 2.4
Start – Max Run – Current (A) 10.6 – 17
Suggested Fuse Size (A) 20


Additional information

Cooling Duty (kw)



Mitsubishi Heavy Industries

Additonal Description

Refrigerant piping size Liquid / Gas mm – 6.35(1/4") / 15.88(5/8")
Cooling capacity – 8.0 kW
Heating capacity – 7.10 kW
New advanced technology control
Back-up switch for loss of controller
Auto re-start after power interruption
Fault diagnosis
Pipe runs up to 15 metres
Infra-red controller
Reduced height slim construction


8.0kW Cooling & 9.0kW Heating

Power Supply

230V 50Hz, Single Phase

Indoor Depth (mm)


Indoor Height (mm)


Indoor Width (mm)


Weight Indoor (kg)


Outdoor Depth (mm)


Outdoor Height (mm)


Outdoor Width (mm)

880 (+88)

Weight Outdoor (kg)



3 Years Parts Only
