The Sammic X-100 has a 2.5kW wash tank and 7.5kW rinse tank. the standard X-100 is a gravity drain machine with a 400mm glass height and 3 washing cycles of 60 / 120 & 180 seconds.
The high performance electronic control panel has rinse and temperature display as standard and the thermal cycle delay which is supplied as standard ensures that a minimum temperature if 85’c is achieved during each rinse cycle.
The unit can also be supplied with a fitted drain pump and constant rinse temperature system if required as well as an optional steam condensing unit with heat recovery system reducing energy cost by up to 30%. The X-100 is also supplied with a 2 year parts & labour warranty
Height open: 1920mm
Basket size: 500 x 500mm
Cycle time: 120 / 180 / 210 seconds
Maximum glass height: 400mm
Electrical loading – Wash pump: 880 W / 1.2 HP, Wash tank: 2.5kW, Rinse tank: 7.5kW, Total power: 8.38kW
Optional fitted drain pump
Optional constant rinse temperature system with booster pump, break tank and drain pump to ensure hygienic sanitized results ideal for high risk operation
Optional steam condenser unit
Supplied with 1 x open basket, 1 x plate basket and 1 x cutlery basket

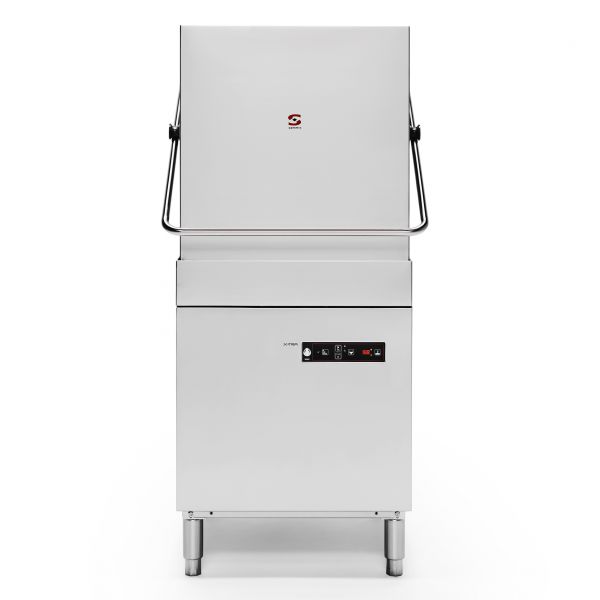

A hood type dishwasher for both straight in line and corner situations -suitable for washing trays, as well as all types of plates, cups, glasses and cutlery.
Professional washing with double system of rotating wash and rinse arms top and bottom.
Hood operated, auto cycle start. 3 wash cycles.
Manufactured from catering grade AISI 304 2B stainless steel and incorporating top quality components.
The inside of the machine features rounded corners, the elimination of angles avoiding the accumulation of dirt.
Removable stainless steel rack holders ensure even distribution of wash water without dead zones. Precision positioned water jets guarantee optimum washing result for even the most stubbornly stained ware. Easy to assemble, bolt less rinse spray arms.
A double filter system provides effective wash pump protection that is easily removed (for maintenance and cleaning)and replaced, without tools.
Completely rounded, stainless steel wire rack support and guide.
A magnetic micro-switch stops the wash cycle, in the event of the hood being raised prematurely.
Standard features include adjustable feet for levelling.
A stainless steel, top of tank filter system is also included as standard.
Rinse aid dosing equipment.
Adjustable washing tank and boiler thermostats.
Thermal cycle delay option, guaranteeing a minimum final rinse temperature of 85ºC for each and every rinse cycle.
Sammic ware washers are designed for easy and fast on-site maintenance.
