Mitsubishi Heavy Industries SRK35ZSP-W Wall Mounted 3.2kw Air Conditioning System

5.00 out of 5
Warranty: 3 Years Parts Only

Installation must be carried out by a qualified F-Gas engineer, find out how we can help you.

Save 3%

Finance from £3.94 per week.

Price match

RRP: £618.00£596.40 inc VAT£497.00 ex VAT


Key Features

Energy Efficiency: EER of 3.52, COP of 3.87
• Convenient Operation: Auto restart, programmable timer, sleep timer
• Comfort & Convenience: Self-clean function, auto flap mode
• Wide Operating Range: Suitable for -15~46˚C


In stock

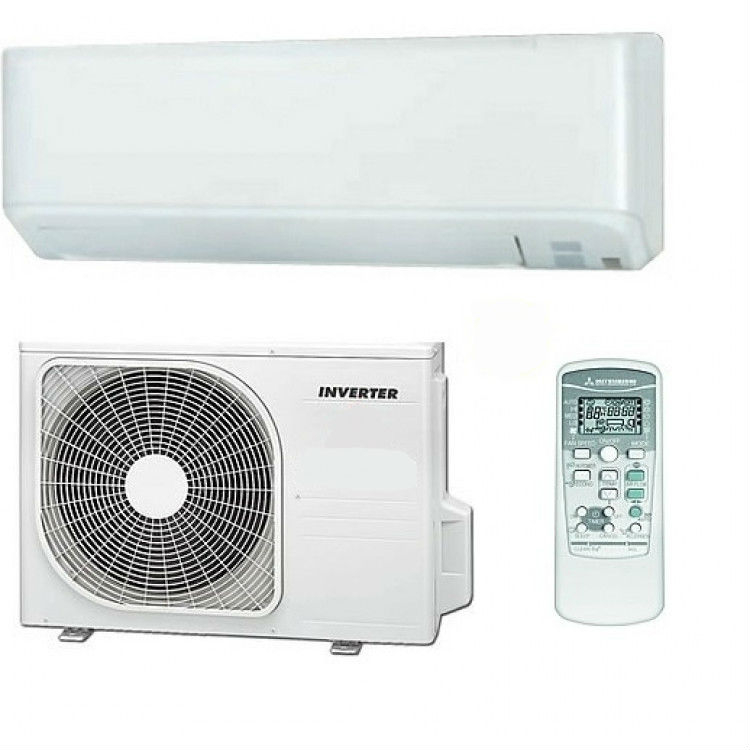

What’s Included in The Package

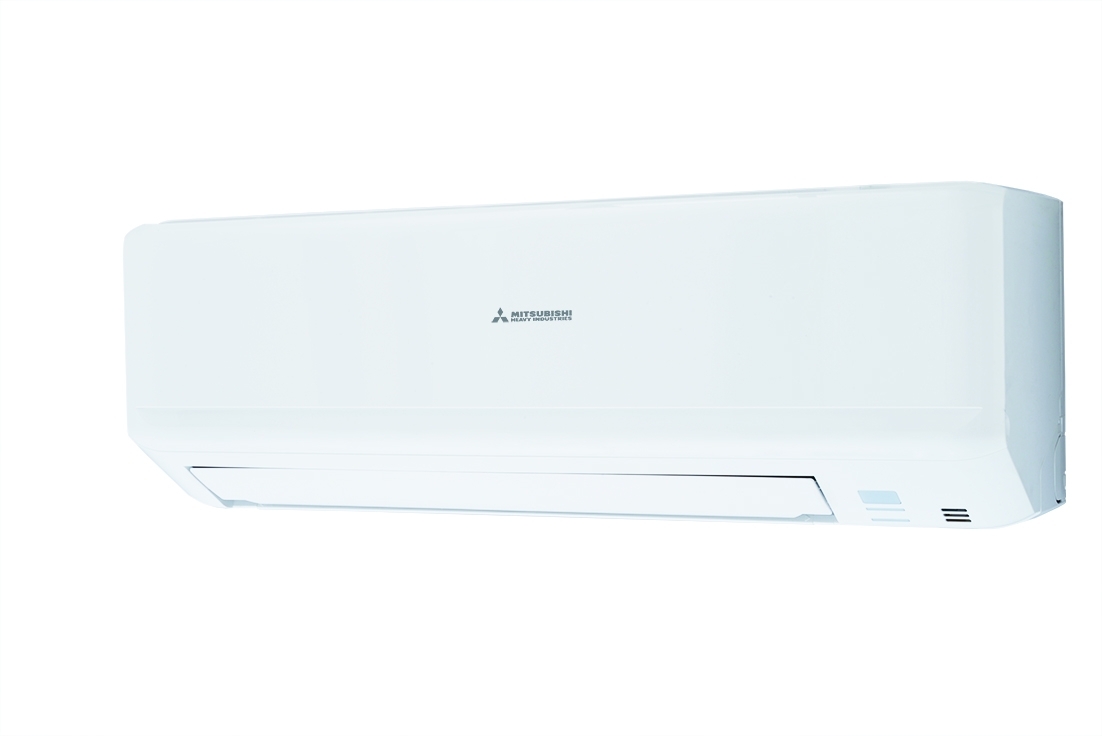

1 x Indoor SRK-ZSP-W – R32 unit
1 x Outdoor SRC R32 Unit

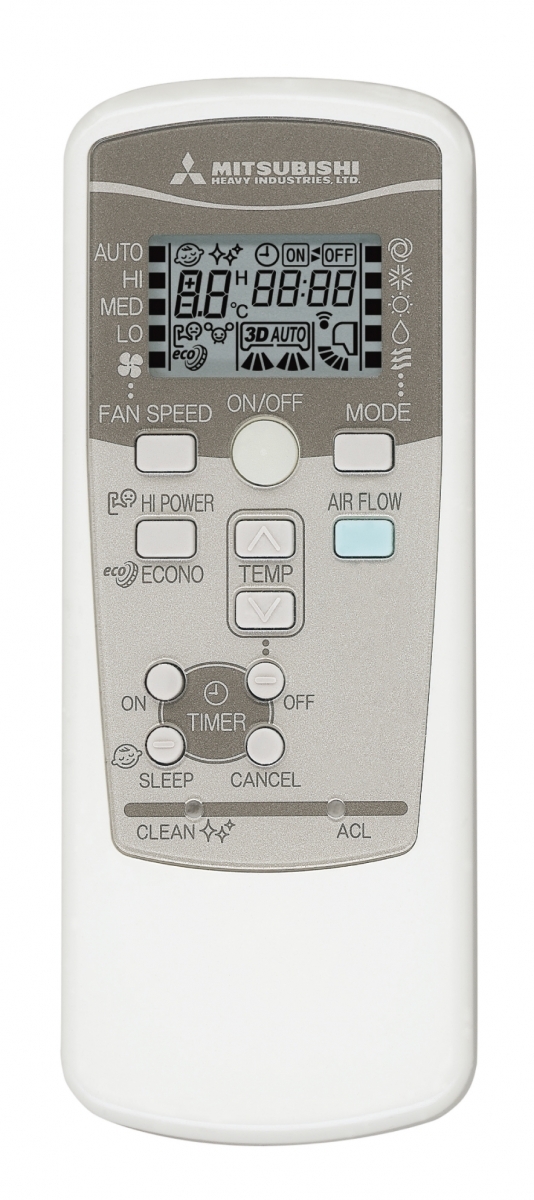

1 x Controller
15 Meters x 1/4 inch coil pipe.
15 Meters x 3/8 inch coil pipe.
8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black
8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black
Wall Bracket: BJ TYPE 2 BRACKETS
Cable: Outdoor rated inter-connecting

Product Description

The Mitsubishi Heavy Industries SRK35ZSP-W Wall Mounted 3.2kw Air Conditioning System are available as standard and premium units. Standard heat pump systems use inverter technologies whilst offering excellent value for money, while premium models features the up-to-the-minute inverter technologies and high efficiency in heat pump technology, with an assortment of additional fun. The SRK-ZSP-W model offers an inverter controlled air conditioner and heat pump at a reasonable price. This model has 3 main modes and can be switched between heating, cooling and dehumidification

Indoor / Outdoor Model No
Nominal Cooling Range (kW) 3.2 (0.9-3.5)
UK Cooling Range Total – Sensible  (kW) 3.0-2.3
Nominal Heating Range (kW) 3.6 (0.9-4.3)
UK Heating (kW) 2.6
SEER-SCOP (Cool – Heat) 6.15 – 4.00
ERP (Cool / Heat) A++ / A+
EER-COP (Cool – Heat) 3.22 – 3.62
Energy Label (Cool / Heat) A / A
Ambient Range – Cool °C 46 to -15
Ambient Range – Heat °C 24 to -15
Indoor Unit Dimensions (H – W -D) mm 262 – 769 – 210
Outdoor Unit Dimensions (H – W – D) mm 540 – 645 (+57) – 275
Weight (Indoor – Outdoor) kg 7.2 – 27
 Indoor Unit Airflow Rate – Cool (L – M – H) l/s  70 – 113 – 158
Indoor Unit Airflow Rate – Heat (L – M – H) l/s  92 – 123 – 160
 Static Pressure Pa  0
 Indoor Sound Pressure – Cool (L – M – H) dB(A)  23 – 36 – 47
 Indoor Sound Pressure – Heat (L – M- H) dB(A)  28 – 36 – 44
 Outdoor Sound Pressure (Cool – Heat) dB(A) 49 – 48
 Pipe Sizes (Gas – Liquid) in  3/8″ – 1/4″
 Pipe Limits (Max Run – Height Diff.) m  15 – 10
 Pre Charged For. (m)  15
 Suitable for Replacement Tech  Yes
 Indoor Drain Connection (mm)  VP16 (14id 16od)
 Power Supply (Outdoor) V – Ph – Hz  230 – 1 – 50
 Interconnecting Cables 3 core + E
 Running Current (Cool – Heat) A  4.7 – 4.7
 Power Consumption (Cool – Heat) kW  0.995 – 0.995
 Start – Max Run Current  (A)  5.0 – 9.0
 Suggested Fuse Size (A)  13

Additional information

Weight 34.2 kg
Cooling Duty (kw)



Mitsubishi Heavy Industries

Additonal Description

Elegant timeless design
Jet Air Technology
Self clean operation


3.2kw Cooling / 3.6w Heating

Power Supply


Indoor Depth (mm)


Indoor Height (mm)


Indoor Width (mm)


Weight Indoor (kg)


Outdoor Depth (mm)


Outdoor Height (mm)


Outdoor Width (mm)


Weight Outdoor (kg)



3 Years Parts Only
